Altronix T2SK78 | 8-Door Altronix/Software House Access and Power I...
Description
Description

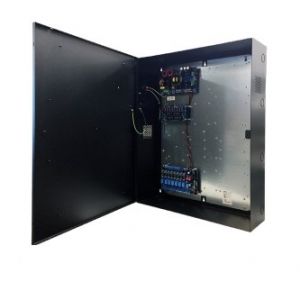

Altronix T2SK78 kit consists of Trove2 enclosure, TSH2 Software House/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) fused access power controller, one (1) voltage regulator and one (1) dual input fused power distribution module.This kit also accommodates various combinations of Software House boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T2SK78 - Features
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
- 3/4" and 1" combination knockouts.
- Voltage: 24VDC
- Current: 10A @ 24VDC continuous max
- Other: Overvoltage protection. Filtered and regulated
- Capacity: 12AH /12VDC (2 within enclosure), 40 AH / 65 AH (requires separate enclosure)
- Type: Sealed lead acid or gel type
Specifications
Specifications
Altronix - T2SK78 - Overview
- AL1024ULXB2 Power Supply/Charger
- Input
- Voltage: 115VAC 60Hz, 4.2A max.
- Main Fuse: 5A / 250V.
- Outputs
- Voltage: 24VDC.
- Current: 10A @ 24VDC continuous max.
- Other: Overvoltage protection. Filtered and regulated.
- Battery Backup (not included)
- Capacity: 12AH /12VDC (2 within enclosure), 40 AH / 65 AH (requires separate enclosure).
- Type: Sealed lead acid or gel type.
- Failover: Upon AC loss, instantaneous.
- Supervision
- AC Failure: Form "C" contacts.
- Battery: Form "C" contacts.
- Indicators LED
- Input: 115VAC is present.
- DC Output: Powered.
- Battery: Discharged or not connected.
- PDS8 Dual Input Power Distribution Module
- Input
- Voltage: 12VDC from VR6 and 24VDC from AL1024ULXB2.
- Main Fuse: 10A / 32V.
- Outputs
- Voltage: 12VDC and/or 24VDC.
- Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
- Individual outputs may be set to OFF position for servicing.
- Output Fuses: 3A / 32V.
- Indicators (LED)
- DC Output: Eight (8) individual output LEDs.
- Green: 12VDC
- Red: 24VDC.
- VR6 Voltage Regulator
- Input
- Voltage: 24VDC from AL1024ULXB2.
- Output
- Voltage: 12VDC.
- Current: 6A continuous.
- Other: Surge suppression.
- Indicators LED
- Input: 24VDC is present.
- Output: Powered.
- ACM8 Access Power Controller
- Input
- Voltage: 24VDC from AL1024ULXB2.
- Main Fuse: 10A / 250V.
- Outputs
- Voltage: 24VDC.
- Eight (8) independently controlled fused outputs:
- a) Fail-Safe and/or Fail-Secure power outputs. Form "C" Relays rated 28VAC or VDC @ 2.5A.
- b) Auxiliary power outputs (unswitched).
- c) Any combination of the above.
- Output Fuses: 3.5A / 250V.
- Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
- Environmental
- Temperature
- Operating: 0° C to 50° C (32° F to 122° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.):
- 128 BTU/Hr.
Altronix - T2SK78 - Specifications
| UNSPSC Code | 43211700.0 |
|---|---|
| Sales Category | Power Supply |
| Agency Listings | CE Compliant |
| Dimensions (approximate) | 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D). |
Altronix - T2SK78 - Weights (approximate)
| Product Weight | 54.3 Lbs. (24.6 kg). |
|---|---|
| Shipping Weight | 59.3 Lbs. (26.9 kg). |
