Brand: Altronix
|
SKU:
10266049
Altronix T2VK78 | 8-Door Altronix/HID VertX Access and Power Integration Kit - Trove2V2 with AL1024ULXB2, ACM8, VR6,PDS8
Regular price
$1,199.18
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T2VK78 | 8-Door Altronix/HID VertX Access and Power Integr...
Regular price
$1,199.18
Unit price
Description
Description
Altronix T2VK78 | 8-Door Altronix/HID VertX Access and Power Integration Kit - Trove2V2 with AL1024ULXB2, ACM8, VR6,PDS8
Main Fuse: 5A / 250V.
Current: 10A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
Battery: Form “C” contacts.
DC Output: Powered.
Battery: Discharged or not connected.
Main Fuse: 10A / 32V.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Output Fuses: 3A / 32V.
Green: 12VDC
Red: 24VDC.
Current: 6A continuous.
Other: Surge suppression.
Output: Powered.
Main Fuse: 10A / 250V.
Eight (8) independently controlled fused outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output Fuses: 3.5A / 250V.
Green LED: FACP disconnect is triggered.
Storage: - 20° C to 70° C ( - 4° F to 158° F).
AL1024ULXB2 Power Supply/Charger / Input
Voltage: 115VAC 60Hz, 4.2A max.Main Fuse: 5A / 250V.
Outputs
Voltage: 24VDC.Current: 10A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Battery Backup
Capacity: 12AH /12VDC (2 within enclosure), 40 AH / 65 AH (requires separate enclosure).Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
Supervision
AC Failure: Form “C” contacts.Battery: Form “C” contacts.
Indicators LED
Input: 115VAC is present.DC Output: Powered.
Battery: Discharged or not connected.
PDS8 Dual Input Power Distribution Module / Input
Voltage: 24VDC from AL1024ULXB2 and 12VDC from VR6.Main Fuse: 10A / 32V.
Outputs
Voltage: 12 and/or 24VDC.Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Output Fuses: 3A / 32V.
Indicators (LED)
DC Output: Eight (8) individual output LEDs.Green: 12VDC
Red: 24VDC.
VR6 Voltage Regulator / Input
Voltage: 24VDC from AL1024ULXB2.Output
Voltage: 12VDC.Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.Output: Powered.
ACM8 Access Power Controller / Input
Voltage: 24VDC from AL1024ULXB2.Main Fuse: 10A / 250V.
Outputs
Voltage: 24VDC.Eight (8) independently controlled fused outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output Fuses: 3.5A / 250V.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).Green LED: FACP disconnect is triggered.
Environmental / Temperature
Operating: 0° C to 49° C (32° F to 120° F).Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.BTU/Hr (approx.):
145 BTU/Hr.Overview

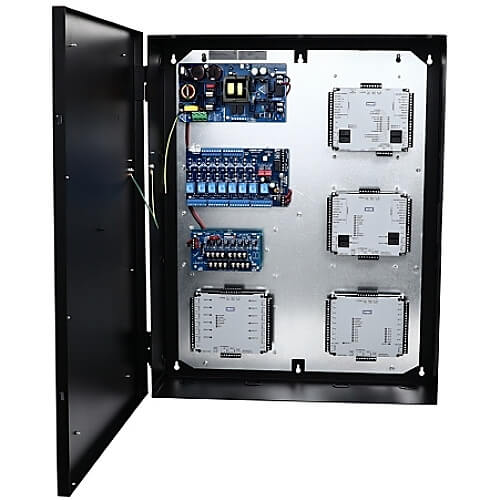

- Altronix T2VK78 kit consists of Trove2 enclosure, TV2 HID/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) 8-output fused access power controller, one (1) voltage regulator and one (1) 8-output fused dual input power distribution module. This kit also accommodates up to four (4) HID Aero/VertX modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Specifications
Specifications
Altronix - T2VK78 - Overview
- Altronix T2VK78 kit consists of Trove2 enclosure, TV2 HID/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) 8-output fused access power controller, one (1) voltage regulator and one (1) 8-output fused dual input power distribution module. This kit also accommodates up to four (4) HID Aero/VertX modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T2VK78 - Product Categories
- Security
- Access Control
- Power Supplies
Altronix - T2VK78 - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | T2VK78 |
| Item Description | 8-Door Altronix/HID VertX Access and Power Integration Kit - Trove2V2 with AL1024ULXB2, ACM8, VR6,PDS8 |
| Agency Listings | CE Compliant |
| Sales Category | Power Supply |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 47 Lbs. |
| (21.3 kg). | Shipping Weight: |
| 51.35 Lbs. | (23.3 kg). |
