Altronix T2VK78DV | 8-Door Altronix/HID VertX® Access and Power Int...
Description
Description

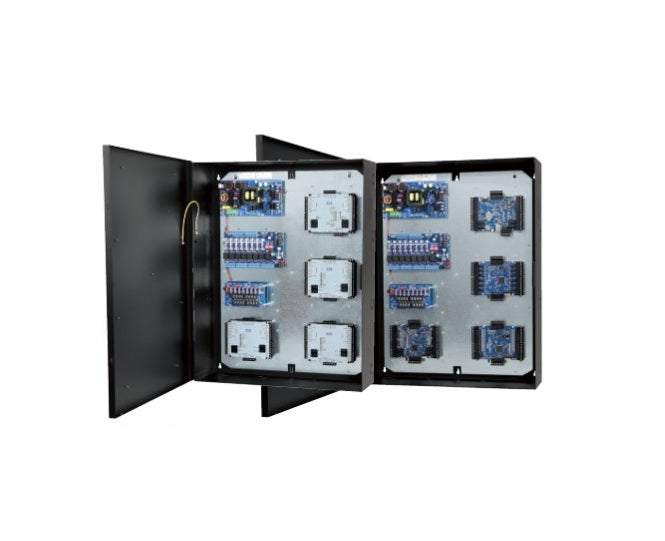

Altronix T2VK78DV kit consists of Trove2 enclosure, TV2 VertX®/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) PTC access power controller, one (1) voltage regulator and one (1) dual input PTC power distribution module. This kit also accommodates up to four (4) HID VertX® modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T2VK78DV - Features
- 24VDC power supply/charger
- Accommodates up to four (4) VertX® V100, V200, V300, V1000, V2000 or Aero X100, X200, X300, X1100 modules
- 16 AWG galvanized steel backplane simplifies board layout and wire management
- Enclosure accommodates up to four (4) 12VDC/12AH batteries
Specifications
Specifications
Altronix - T2VK78DV - Specifications
| Input Voltage | 220VAC |
|---|---|
| Outputs Voltage | 24 VDC |
| Battery Charging | 12VDC/12AH |
| Indicators LED | 220VAC is present |
| Battery Charging | Sealed lead acid or gel type |
| Operating Temperature | 0° C to 49° C (32° F to 120° F). |
| Relative Humidity | 85% +/- 5%. |
| Dimensions | 21.5"W x 27.25"H x 6.5"D |
| Weights | 47 Lbs |
| BTU/Hr. (approx.) | 145 BTU/Hr. |
