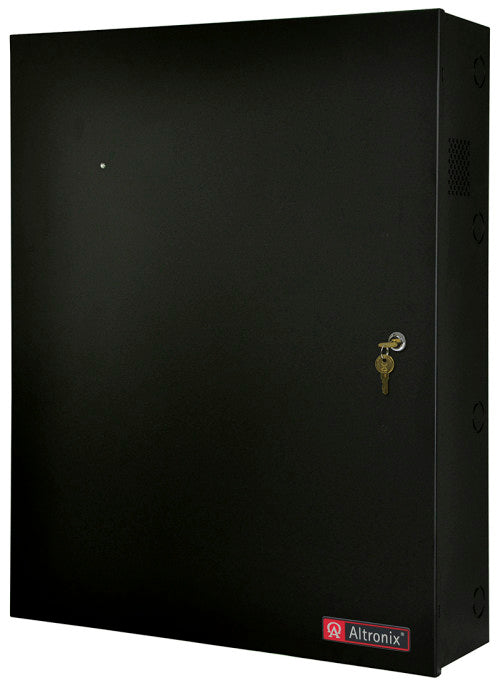

Altronix T2VK7F8 | 8-Door Access and Power Integration Kit - Trove2V2 with eFlow104NB, ACM8, VR6,PDS8

Altronix - T2VK7F8 - Features and Specifications

• Power Supply/Chargers
• INPUT
• Voltage: 120VAC, 60Hz, 4.5A max.
• Main Fuse: 6.5A / 250V.
• OUTPUT
• Voltage: 24VDC.
• Current: 10A continuous.
• Auxiliary: Class 2 power-limited @ 1A (unswitched).
• Other: Overvoltage protection. Filtered and regulated.
• Battery Backup (not included)
• Type: Sealed lead acid or gel type.
• Fuse Rating: 10A/32VDC.
• Failover: Upon AC loss, instantaneous.
• Fire Alarm Disconnect
• Supervised: Latching or non-latching.
• EOL: 10K Resistor.
• Indicators LED
• Input: 120VAC is present.
• DC Output: Powered.
• PDS8 Dual Input Power Distribution Module
• INPUT
• Voltage: 24VDC from eFlow6NB and 12VDC from VR6.
• Main Fuse: 10A / 32V.
• OUTPUT
• Voltage: 12 and/or 24VDC.
• Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
• Individual outputs may be set to OFF position for servicing.
• Output Fuses: 3A / 32V.
• Indicators (LED)
• DC Output: Eight (8) individual output LEDs.
• Green: 12VDC
• Red: 24VDC.
• VR6 Voltage Regulator
• INPUT
• Voltage: 24VDC from eFlow6NB.
• OUTPUT
• Voltage: 12VDC.
• Current: 6A continuous.
• Other: Surge suppression.
• Indicators LED
• Input: 24VDC is present.
• Output: Powered.
• ACM8 Access Power Controller
• INPUT
• Voltage: 24VDC from eFlow104NB.
• Main Fuse: 10A / 250V.
• Outputs
• Voltage: 24VDC.
• Eight (8) independently controlled fused outputs:
• a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
• b) Auxiliary power outputs (unswitched).
• c) Any combination of the above.
• Output Fuses: 3.5A / 250V.
• Indicators (LED)
• Red LEDs: Outputs are triggered (relays energized).
• Green LED: FACP disconnect is triggered.
