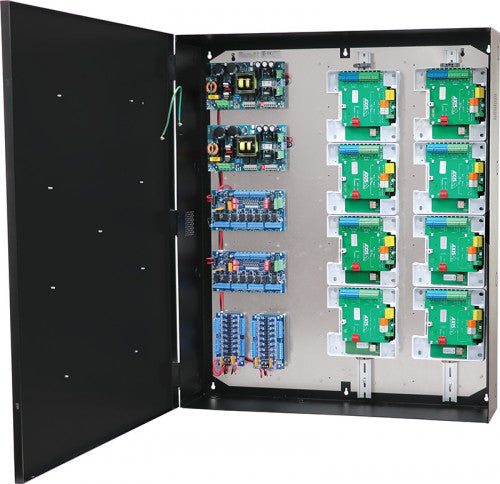

Altronix T3AXK77F16SDV kit consists of Trove2 enclosure, TV3 Axis Communications/Altronix backplane with two (2) 24VDC @ 10A power supply/charger, two (2) eight (8) PTC protected dual input/output access control modules, two (2) 12VDC voltage regulators and two (2) sixteen (16) PTC protected dual input/output power distribution modules. This kit also accommodates up to eight (8) A1601 or A1610 or sixteen (16) A1210 modules for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Specifications
Specifications
Altronix - T3AXK77F16SDV - Specifications
| Input Volage | 220VAC |
|---|---|
| Output | 24VDC |
| Battery Charging | Sealed lead acid or gel type |
| Supervision | Form “C” contacts |
| Indicators LED | 220VAC is present |
| Operating Temperature | 0° C to 49° C (32° F to 120° F). |
| Storage Temperature | - 20° C to 70° C ( - 4° F to 158° F). |
| Relative Humidity | 85% +/- 5% |
| BTU/Hr. (approx.) | 246 BTU/Hr |
| Dimensions | 30.12"W x 36.12"H x 7.06"D |
| Weight | 84.2 Lbs |
