Altronix T3DK77F24D | 24-Door Altronix/DIN Rail Access and Power In...
Description
Description

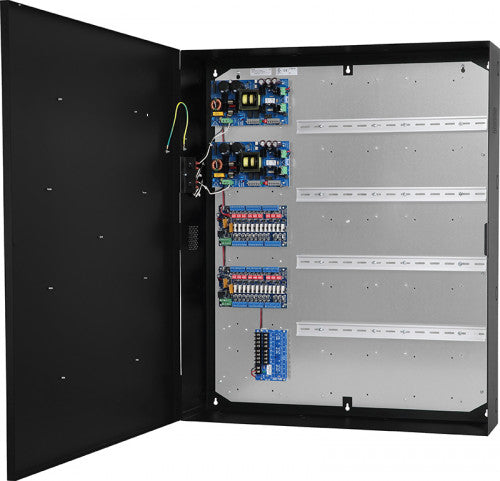

Altronix T2DK77F24 kit consists of Trove3 enclosure and TV3 Altronix/HID/DIN Rail backplane with two (2) 24VDC @ 10A power supply/chargers, two (2) twelve (12) output PTC protected access control modules and one (1) eight (8) PTC protected power distribution module. This kit also accommodates any DIN Rail mountable products for up to twenty four (24) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Specifications
Specifications
Altronix - T3DK77F24D - Specifications
| Input | 120VAC, 60Hz, 4.5A. |
|---|---|
| Output | 24VDC |
| Supervision | Form “C” contacts |
| Indicators LED | 120VAC is present |
| Operating Temperature | 0° C to 49° C (32° F to 120° F) |
| Storage Temperature | - 20° C to 70° C ( - 4° F to 158° F) |
| Relative Humidity | 85% +/- 5%. |
| BTU/Hr. (approx.) | 263 BTU/Hr |
| Dimensions | 30.12"W x 36.12"H x 7.06"D |
| Weight | 87.2 Lbs. |
