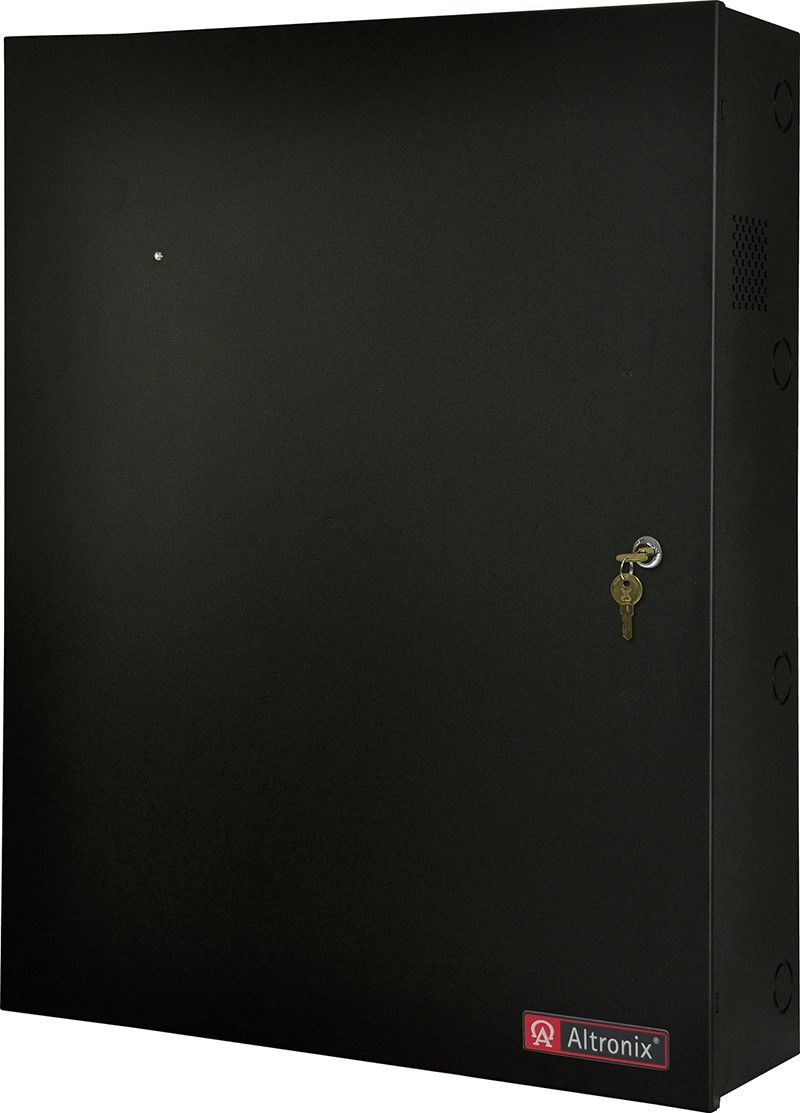

Altronix T3HW75XK1 is a 16-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Honeywell hardware. This unit provides ample power and dual voltage outputs to support Honeywell platform controllers and locking devices. The T3HW75XK1 accommodates up to one (1) Intelligent Controller and seven (7) Dual Reader Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
Altronix - T3HW75XK1 - Features
- eFlow104NB Power Supply/Charger 1
- Input
- Voltage: 120VAC, 60Hz, 4.5A
- Input Fuse: 6.3A / 250V
- Output
- Voltage: 24VDC @ 10A
- Auxiliary: 1A (unswitched)
- Protection: Overvoltage protection. Filtered and regulated
- eFlow102NB Power Supply/Charger 2
- Input
- Voltage: 120VAC, 60Hz, 3.5A
- Input Fuse: 5A / 250V
- Output
- Voltage: 12VDC @ 10A
- Auxiliary: 1A (unswitched)
- Protection: Overvoltage protection. Filtered and regulated
- Both Power Supplies
- Battery Charging
- Type: Sealed lead acid or gel type
- Fuse Rating: 15A/32V
- Failover: Upon AC loss, instantaneous
- (Batteries are sold separately)
- Fire Alarm Disconnect
- Supervised: Latching or non-latching
- EOL 10K Resistor
- Supervision
- AC Failure: Form " contacts
- Battery: Form " contacts
- Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge
- Indicators LED
- AC Input: 120VAC is present
- DC Output: Powered
- Battery: Discharged or not connected
- Two (2) ACMS8 Dual Input Access Power Controllers
- Input
- Voltage: 24VDC from eFlow104NB and 12VDC from eFlow102NB
- Input Fuse: 15A / 32V
- Outputs
- Voltage: 24VDC
- Eight (8) independently controlled fused outputs:
- a) Fail-Safe and/or Fail-Secure power outputs
- Form " Relays rated 28VAC or VDC @ 2.5A
- b) Auxiliary power outputs (unswitched)
- c) Any combination of the above
- Outputs Ratings
- Fuses: 3A/32V
- Indicators (LED's)
- Red LEDs: Outputs are triggered (relays energized)
- Green LED: FACP disconnect is triggered
- Two (2) PDS8 Dual Input Power Distribution Modules
- Input
- Voltage: 24VDC from eFlow104NB and 12VDC from eFlow102NB
- Input Fuse: 10A / 32V
- Outputs
- Voltage: 12VDC and/or 24VDC
- Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2
- Individual outputs may be set to OFF position for servicing
- Outputs Ratings
- Fuses: 3A/32V
- Indicators (LED's)
- DC Output: Eight (8) individual output LEDs
- Green: 12VDC
- Red: 24VDC
- Environmental
- Temperature
- Operating: 0° C to 49° C (32° F to 120° F)
- Storage: 20° C to 70° C ( 4° F to 158° F)
- Relative Humidity
- Relative Humidity 85% +/5%
- BTU/Hr (approx.):
- 263 BTU/Hr
