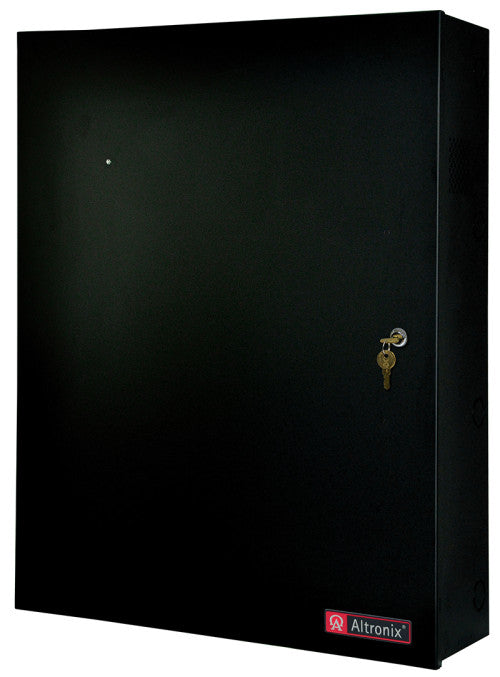

Altronix T3HWK75F16 | 16-Door Access and Power Integration Kit - Trove3HW3 with THWD2, eFlow104NB, eFlow102NB, (2) ACM8, PD8UL, RSB2

Altronix - T3HWK75F16 - Features and Specifications

• Power Supply/Charger - 1
• INPUT
• Voltage: 120VAC, 60Hz, 4.5A max.
• Main Fuse: 6.5A / 250V.
• OUTPUT
• Voltage: 24VDC.
• Current: 10A continuous.
• Power Supply/Charger - 2
• INPUT
• Voltage: 120VAC, 60Hz, 3.5A max.
• Main Fuse: 5A / 250V.
• Both Power Supplies
• OUTPUT
• Auxiliary: Class 2 power-limited @ 1A (unswitched).
• Other: Overvoltage protection. Filtered and regulated.
• Battery Backup (not included)
• Type: Sealed lead acid or gel type.
• Fuse Rating: 10A / 32VDC.
• Failover: Upon AC loss, instantaneous.
• Fire Alarm Disconnect
• Supervised: Latching or non-latching.
• EOL: 10K Resistor.
• Supervision
• AC Failure: Form “C” contacts.
• Battery: Form “C” contacts.
• Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units or 71-73% for 12V units. Prevents deep battery discharge.
• Indicators (LED)
• AC Input: 120VAC is present.
• DC Output: Powered.
• Two (2) ACM8 Access Power Controllers
• INPUT
• Voltage: 24VDC from eFlow104NB.
• Main Fuse: 10A / 250V.
• OUTPUT
• Voltage: 24VDC.
• Eight (8) independently controlled fused outputs:
• a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
• b) Auxiliary power outputs (unswitched).
• c) Any combination of the above.
• Output Fuses: 3.5A / 250V.
• Indicators (LED)
• Red LEDs: Outputs are triggered (relays energized).
• Green LED: FACP disconnect is triggered.
• PD8UL Power Distribution Module
• INPUT
• Voltage: 24VDC from eFlow104NB.
• Outputs
• Voltage: 24VDC.
• Eight (8) fuse protected outputs. 3.5A per output max.
• Output Fuses: 3.5A / 250V.
• Indicators (LED)
• Green LED: DC Output.
