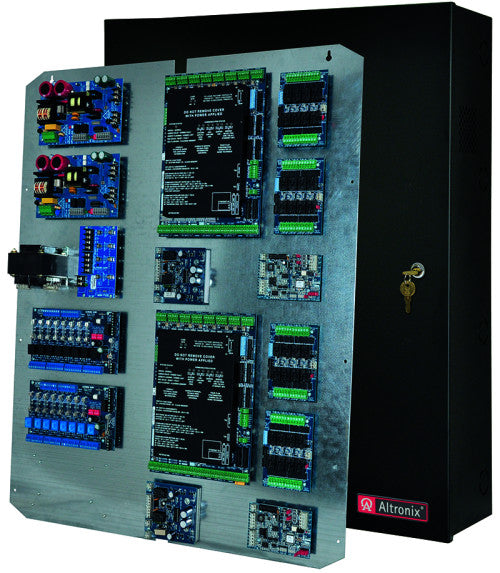

Altronix T3KAK33F16 | 16-Door Access and Power Integration Kit - Trove3KA3 with (2) eFlow6NB, (2) ACM8, PD4UL, T16175
Regular price
$2,312.60
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T3KAK33F16 | 16-Door Access and Power Integration Kit - Tr...
Regular price
$2,312.60
Unit price
Description
Description
Altronix T3KAK33F16 | 16-Door Access and Power Integration Kit - Trove3KA3 with (2) eFlow6NB, (2) ACM8, PD4UL, T16175

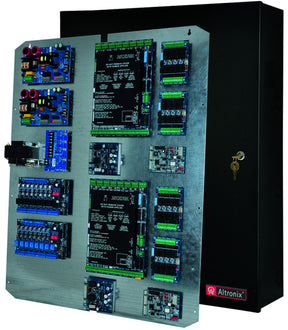

Altronix T3KAK33F16 kit consists of Trove3 enclosure and TKA3 Keyscan/Altronix door backplane with two (2) 12 or 24VDC @ 6A power supply/chargers, two (2) 8-output fused access power controllers, one (1) 4-output fused power distribution module and one (1) 16VAC transformer. This kit also accommodate various combinations of Keyscan boards for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix T3KAK33F16 kit consists of Trove3 enclosure and TKA3 Keyscan/Altronix door backplane with two (2) 12 or 24VDC @ 6A power supply/chargers, two (2) 8-output fused access power controllers, one (1) 4-output fused power distribution module and one (1) 16VAC transformer. This kit also accommodate various combinations of Keyscan boards for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T3KAK33F16 - Features and Specifications
- Power Supply/Chargers
- INPUT
- Voltage: 120VAC, 60Hz, 3.5A max.
- Input Fuse: 5A / 250V.
- OUTPUT
- Voltage: Factory set at 24VDC.
- Current: 6A continuous.
- Auxiliary: Class 2 power-limited @ 1A (unswitched).
- Other: Overvoltage protection. Filtered and regulated.
- Battery Backup (not included)
- Type: Sealed lead acid or gel type.
- Fuse Rating: 10A/32VDC.
- Failover: Upon AC loss, instantaneous.
- Fire Alarm Disconnect
- Supervised: Latching or non-latching.
- EOL: 10K Resistor.
- Indicators LED
- Input: 120VAC is present.
- DC Output: Powered.
- Battery: Discharged or not connected.
- T16175 Transformer
- INPUT
- Voltage: 115VAC, 50/60Hz, 1.6A.
- OUTPUT
- Voltage: 16VAC/175VA. 11A supply current.
- PD4UL Power Distribution Module
- INPUT
- Voltage: 16VAC from T16175.
- OUTPUT
- Voltage: 16VAC.
- Four (4) fuse protected outputs. 3.5A per output max.
- Output Fuses: 3.5A/250V.
- Indicators (LED)
- Green LED: AC Output.
- Two (2) ACM8 Access Power Controllers
- INPUT
- Voltage: 24VDC from eFlow6NB.
- Input Fuse: 10A/250V.
- OUTPUT
- Voltage: 24VDC.
- Eight (8) independently controlled fused outputs:
- a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
- b) Auxiliary power outputs (unswitched).
- c) Any combination of the above.
- Output Fuses: 3.5A/250V.
- Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
Specifications
Specifications
Altronix - T3KAK33F16 - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
- Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
- 3/4" and 1" combination knockouts.
Altronix - T3KAK33F16 - Temperature
- Operating: 0° C to 50° C (32° F to 122° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 152 BTU/Hr.
Altronix - T3KAK33F16 - Specifications
| UNSPSC Code | 24102001 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - T3KAK33F16 - Weights (approximate)
| Product Weight: | 85 Lbs. (38.6 kg). |
|---|---|
| Shipping Weight | 92 Lbs. (41.73 kg). |
Altronix - T3KAK33F16 - Accessories
| LINQ2 | Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers |
|---|---|
| MM12 | Mounting Magnets, Twelve (12) Quantity per Pack |
| MM24 | Mounting Magnets, Twenty Four (24) Quantity per Pack |
| MM4 | Mounting Magnets, Four (4) Quantity per Pack |
| MM8 | Mounting Magnets, Eight (8) Quantity per Pack |
| WM100 | Magnetic Cable Tie Mounts |
| WM25 | Magnetic Cable Tie Mounts |
| WM5 | Magnetic Cable Tie Mounts |
