Altronix T3LMK77F16N | 16-Door Altronix/LiftMaster Access and Power...
Description
Description

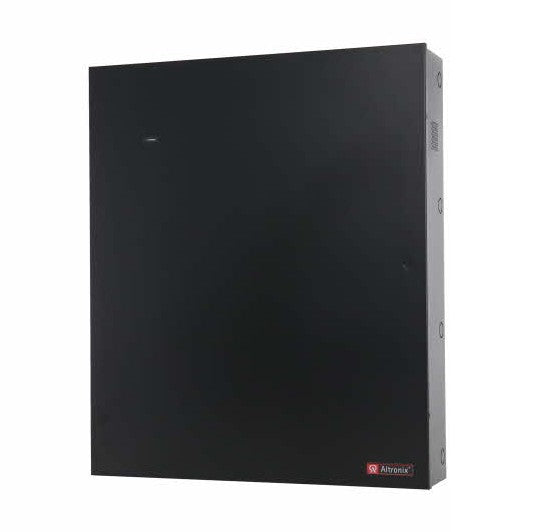

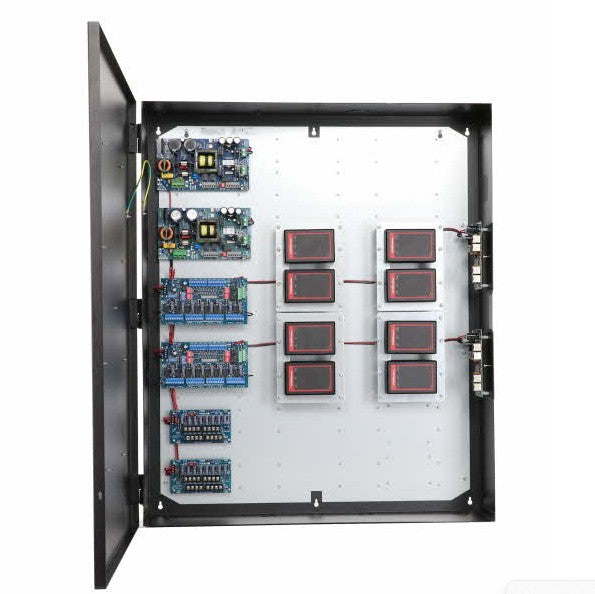

Altronix T3LMK77F16N kit consists of Trove3 enclosure and TM3 Altronix & LiftMaster backplane with two (2) 24VDC @ 10A power supply/chargers, two (2) 12VDC voltage regulators, two (2) eight (8) fuse protected output dual voltage power distribution modules, two (2) eight (8) dual voltage fuse protected output access control modules and two (2) 5-Port Hardened PoE+ Switches. This kit also accommodates up to eight (8) LiftMaster Smart Access 2-Door Controller (CAP2D) for up to sixteen (16) doors in a single enclosure. Four (4) LMBK2 mounting brackets for LiftMaster CAP2D are factory installed. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T3LMK77F16N - Features
- 24VDC power supply/charger
- Accommodates up to eight (8) LiftMaster Smart Access 2-Door Controller (CAP2D)
- Convenient knockout configuration:- One (1) single knockout 2.415" (2" Conduit)
- Sixteen (16) double knockouts 1.362" (1" Conduit) / 1.115" (3/4" Conduit)
- 16 AWG galvanized steel backplane simplifies board layout and wire management
- Enclosure accommodates up to four (4) 12VDC/12AH batteries
- CE European Conformity
Specifications
Specifications
Altronix - T3LMK77F16N - Specifications
| Input Voltage | 120VAC, 60Hz. 4.5A |
|---|---|
| Input Fuse | 6.3A/250V |
| Output Voltage | 24VDC |
| Battery Charging Capacity | 12VDC/12AH (4 within enclosure) |
| Supervision AC Failure | Form “C" contacts |
| Input | 120VAC is present |
| Input | 24VDC is present |
| Input Fuses | 15A/32V |
| Power Output Maximum Power | Four (4) 10/100/1000 Mbps PoE/PoE+ (rated up to 30W) ports 60W (at 12VDC) or 120W (at 24VDC) total power |
| Ethernet Ports | Five (5) 10/100/1000 Mbps ports |
| Connectivity: | RJ45, auto-crossover |
| Wire type: | 4-pair CAT5e or higher structured cable |
| Distance: | up to 100m |
| Weight (approx.) | 40.1 lb. (18.2 kg) |
| Relative Humidity: | 85% +/– 5% |
| BTU/Hr. (approx.) | 145 BTU/Hr |
| Dimensions (H x W x D) | 27.25" x 21.5" x 6.5" (692.2mm x 546.1mm x 165.1mm) |
