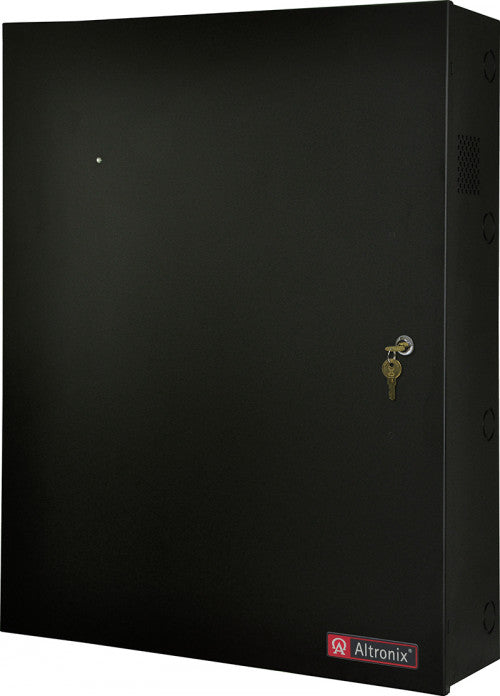

Altronix T3M75XK2D | 14-Door Altronix/Mercury Access and Power Inte...
Description
Description
Altronix T3M75XK2D is a 14-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T3M75XK2D accommodates one (1) Intelligent Reader Controller and seven (7) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
Altronix - T3M75XK2D - Features
- Accommodates the following Mercury controllers
- 16 AWG galvanized steel backplane simplifies board layout and wire management
- Enclosure accommodates up to four (4) 12VDC/12AH batteries
Specifications
Specifications
Altronix - T3M75XK2D - Specifications
| Input Voltage | 120VAC, 60Hz, 4.5A. |
|---|---|
| Outputs Voltage | 24 VDC |
| Battery Charging | 12VDC/12AH (4 within enclosure) |
| Indicators LED | 120VAC is present |
| Battery Charging | Sealed lead acid or gel type |
| Operating Temperature | 0° C to 49° C (32° F to 120° F). |
| Relative Humidity | 85% +/- 5%. |
| Dimensions | 30.12"W x 36.12"H x 7.06"D |
| Weights | 85.6 Lbs |
| BTU/Hr. (approx.) | 263 BTU/Hr. |
