Altronix T3M7724XK1D | 24-Door Altronix Mercury Access And Power In...
Description
Description

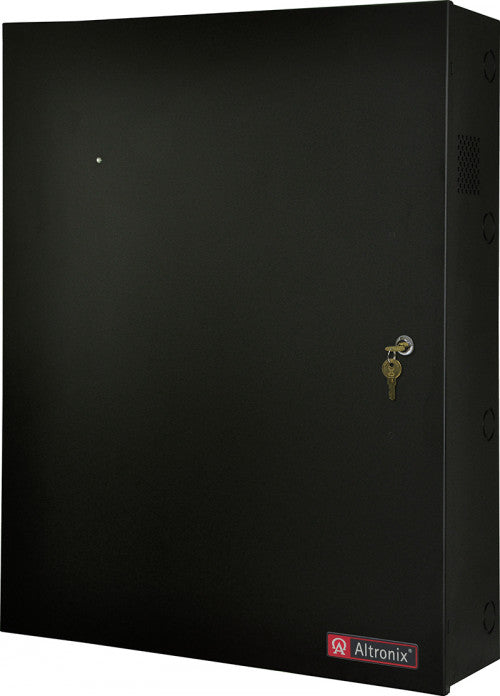

Altronix T3M7724XK1D is a 24-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T3M7724XK1D accommodates up to one (1) Intelligent Dual Reader Controller and eleven (11) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
Altronix - T3M7724XK1D - Features
- Removable backplane
- 3" high finger duct for wire management
- Custom Wire Harnesses for power distribution and controller connections
- 16 AWG galvanized steel backplane simplifies board layout and wire management
- Enclosure accommodates up to four (4) 12VDC/12AH batteries
Specifications
Specifications
Altronix - T3M7724XK1D - Specifications
| Power Supplies Input Voltage | 120VAC, 60Hz, 9A max |
|---|---|
| Input Fuse | 6.3A/250V |
| Power Supplies Output Voltage | 24VDC @ 10A |
| Battery Charging Capacity | 12VDC/12AH (4 within enclosure) |
| Battery Charging Type | Sealed lead acid or gel type |
| Indicators (LED) AC Input | 120VAC is present |
| Indicators (LED) DC Output | 24VDC is present |
| Power Controllers Input Voltage | 24VDC from eFlow104NB and 12VDC from VR6 |
| Input PTCs | 9A |
| Power Controllers Outputs Voltage | 12VDC and/or 24VDC |
| Output PTCs | 2.5A |
| Operating Temperature | 0ºC to 49ºC (32ºF to 120ºF) |
| Storage | – 20ºC to 70ºC (– 4ºF to 158ºF) |
| Product Weight: | 85.6 Lbs. (38.83 kg). |
| Shipping Weight: 98.8 Lbs. (44.82 kg). | 98.8 Lbs. (44.82 kg). |
