Brand: Altronix
|
SKU:
10343995

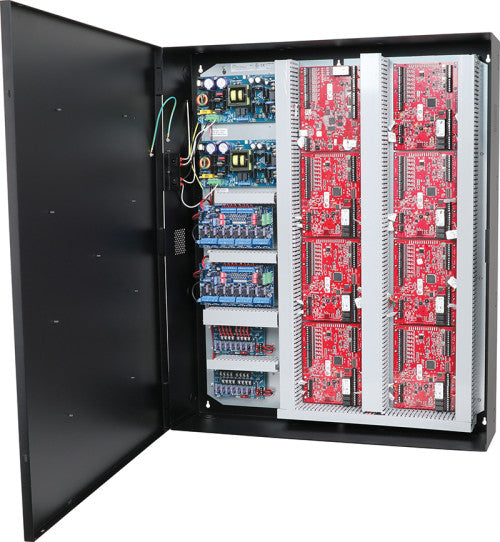

Altronix T3M77LXK1DV | 16-Door Altronix/Mercury Access and Power Integration Wired Kit - Trove3M3 with (2) AL1024XB2V, (2) ACMS8CB, (2) PDS8CB, (2) VR6, RSB2
Regular price
$3,804.09
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T3M77LXK1DV | 16-Door Altronix/Mercury Access and Power In...
Regular price
$3,804.09
Unit price
Description
Description
Altronix T3M77LXK1DV | 16-Door Altronix/Mercury Access and Power Integration Wired Kit - Trove3M3 with (2) AL1024XB2V, (2) ACMS8CB, (2) PDS8CB, (2) VR6, RSB2
Fusing: 5A / 250V.
Current: 10A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
Battery: Form “C” contacts.
DC Output: Powered.
Battery: Discharged or not connected.
Input PTC: 9A.
Eight (8) independently controlled PTC outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output PTCs: 2.5A.
Green LED: FACP disconnect is triggered.
Current: 6A continuous.
Other: Surge suppression.
Output: Powered.
Input PTCs: 9A.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Green: 12VDC
Red: 24VDC.
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Two (2) AL1024XB2V Power Supply/Chargers / Input
Voltage: 220VAC (range 198VAC-256VAC), 50/60Hz, 5A.Fusing: 5A / 250V.
Outputs
Voltage: 24VDC.Current: 10A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Battery Backup
Capacity: 12AH/12VDC (Up to 2 within enclosure) 40AH/65AH (requires separate enclosure).Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
Supervision
AC Failure: Form “C” contacts.Battery: Form “C” contacts.
Indicators LED
Input: 220VAC is present.DC Output: Powered.
Battery: Discharged or not connected.
Two (2) ACMS8CB Access Power Controllers / Input
Voltage: 24VDC from AL1024XB2V and 12VDC from VR6.Input PTC: 9A.
Outputs
Voltage: 12VDC and/or 24VDC.Eight (8) independently controlled PTC outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output PTCs: 2.5A.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).Green LED: FACP disconnect is triggered.
Two (2) VR6 Voltage Regulators / Input
Voltage: 24VDC from AL1024XB2V.Output
Voltage: 12VDC.Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.Output: Powered.
Two (2) PDS8CB Dual Input Power Distribution Modules / Input
Voltage: 24VDC from AL1024XB2V and 12VDC from VR6.Input PTCs: 9A.
Outputs
Voltage: 12VDC and/or 24VDC.Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
PTCs: 2.5A.Indicators LED
DC Output: Eight (8) individual output LEDs.Green: 12VDC
Red: 24VDC.
Environmental / Temperature
Operating: 0° C to 49° C (32° F to 120° F).Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.BTU/Hr (approx.):
289 BTU/Hr.Overview
- Altronix T3M77LXK1DV is a 16-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T3M77LXK1DV accommodates up to one (1) Intelligent Dual Reader Controller and seven (7) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications. *Also compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt.
Specifications
Specifications
Altronix - T3M77LXK1DV - Overview
- Altronix T3M77LXK1DV is a 16-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T3M77LXK1DV accommodates up to one (1) Intelligent Dual Reader Controller and seven (7) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications. *Also compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt.
Altronix - T3M77LXK1DV - Product Categories
- Security
- Access Control
- Panels
Altronix - T3M77LXK1DV - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | T3M77LXK1DV |
| Item Description | 16-Door Altronix/Mercury Access and Power Integration Wired Kit - Trove3M3 with (2) AL1024XB2V, (2) ACMS8CB, (2) PDS8CB, (2) VR6, RSB2 |
| Agency Listings | CE Compliant |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 85.6 Lbs. |
| (38.83 kg). | Shipping Weight: |
| 98.8 Lbs. | (44.82 kg). |
