Brand: Altronix | SKU: 10265916

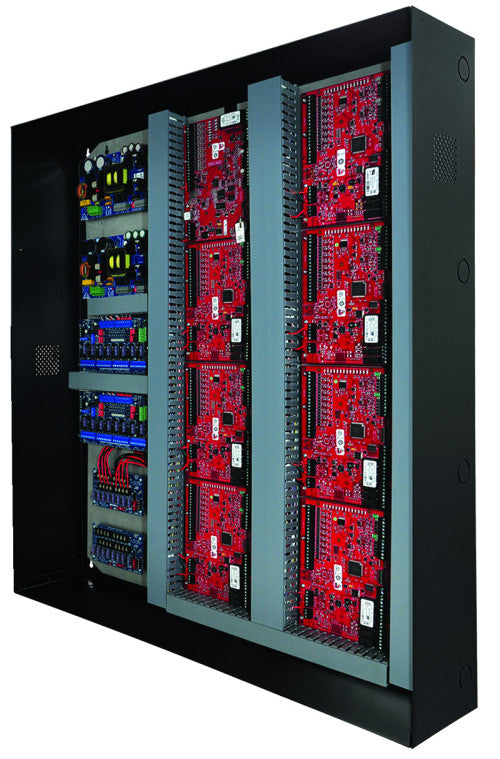

Altronix T3M77XK2 | 14-Door Altronix/Mercury Access and Power Integration Kit - Trove3M3 with (2) eFlow104NB, (2) ACMS8, (2) VR6, (2) PDS8, RSB2

$3,905.73
Shipping calculated at checkout.

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description
Altronix T3M77XK2 | 14-Door Altronix/Mercury Access and Power Integration Kit - Trove3M3 with (2) eFlow104NB, (2) ACMS8, (2) VR6, (2) PDS8, RSB2

Two (2) eFlow104NB Power Supply/Chargers / Input
Voltage: 120VAC, 60Hz, 9A max.
Input Fuse: 6.3A / 250V.
Output
Voltage: 24VDC @ 10A.
Auxiliary: 1A (unswitched).
Protection: Overvoltage protection. Filtered and regulated.
Battery Backup
Type: Sealed lead acid or gel type.
Fuse Rating: 15A/32VDC.
Failover: Upon AC loss, instantaneous.
Fire Alarm Disconnect
Supervised: Latching or non-latching.
EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
AC Input: 120VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
Two (2) VR6 Voltage Regulator / Input
Voltage: 24VDC from eFlow104NB.
Output
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.
Output: Powered.
Two (2) ACMS8 Access Power Controllers / Input
Voltage: 24VDC from eFlow104NB.
Input Fuse: 10A / 250V.
Outputs
Voltage: 24VDC.
Eight (8) 24VDC independently controlled fused outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output Fuses: 3.5A / 250V.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
Two (2) PDS8 Dual Input Power Distribution Module / Input
Voltage: 12VDC from VR6 and 24VDC from eFlow104NB.
Input Fuse: 10A/32V.
Outputs
Voltage: 12VDC and/or 24VDC.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
Fuses: 3A/32V.
Indicators LED
DC Output: Eight (8) individual output LEDs.
Green: 12VDC
Red: 24VDC.
Environmental / Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
289 BTU/Hr.

Overview

  • Altronix T3M77XK2 is a 14-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T3M77XK2 accommodates one (1) Intelligent Dual Reader Controller and seven (7) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications. *Compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt

Specifications

Altronix - T3M77XK2 - Overview

  • Altronix T3M77XK2 is a 14-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T3M77XK2 accommodates one (1) Intelligent Dual Reader Controller and seven (7) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications. *Compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt

Altronix - T3M77XK2 - Product Categories

  • Security
  • Access Control
  • Power Supplies

Altronix - T3M77XK2 - Specifications

Brand NameAltronix
Manufacturer Part NumberT3M77XK2
Item Description14-Door Altronix/Mercury Access and Power Integration Kit - Trove3M3 with (2) eFlow104NB, (2) ACMS8, (2) VR6, (2) PDS8, RSB2
Agency ListingsCE Compliant
Sales CategoryPower Supply
UNSPSC Code43211700
Weights (approximate):-
Product Weight:85.6 Lbs.
(38.83 kg).Shipping Weight:
98.8 Lbs.(44.82 kg).
