Altronix T3MB755K1D | 24-Door Altronix/Mercury Access and Power Int...
Description
Description

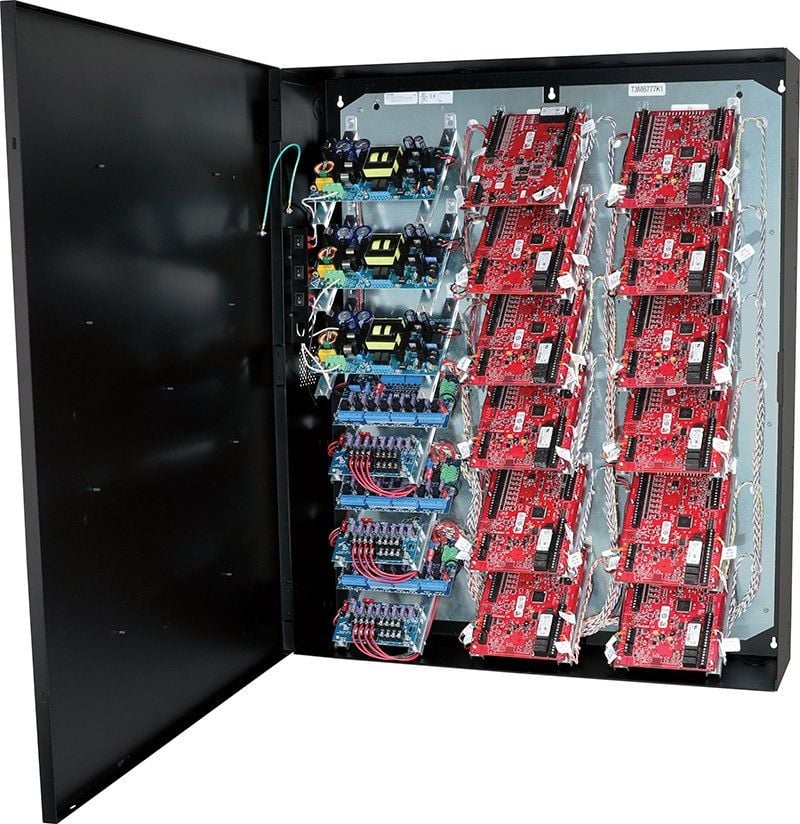

Altronix T3MB755K1D is a 24-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T3MB755K1D accommodates one (1) Intelligent Dual Reader Controller and eleven (11) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications. Also compatible with these authentic Mercury partners AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt.
Altronix - T3MB755K1D - Features
- eFlow104NB Power Supply/Charger 1
- Input
- Voltage: 120VAC, 60Hz, 4.5A
- Main Fuse: 6.3A / 250V
- Output
- Voltage: 24VDC @ 10A
- Auxiliary: 1A (unswitched)
- Protection: Overvoltage protection. Filtered and regulated
- Two (2) eFlow102NB Power Supply/Chargers 2 and 3
- Input
- Voltage: 120VAC, 60Hz, 3.5A
- Input Fuse: 5A / 250V
- Output
- Voltage: 12VDC @ 10A
- Auxiliary: 1A (unswitched)
- Other: Overvoltage protection. Filtered and regulated
- Both Power Supplies: (Battery Charging)
- Capacity: Up to 40AH/65AH (requires separate enclosure)
- Type: Sealed lead acid or gel type
- Failover: Upon AC loss, instantaneous
- Batteries are sold separately
- Fire Alarm Disconnect
- Supervised: Latching or non-latching
- EOL: 10K Resistor
- Supervision
- AC Failure: Form " contacts
- Battery: Form " contacts
- Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge
- Indicators LED
- AC Input: 120VAC is present
- DC Output: Powered
- Battery: Discharged or not connected
- Three (3) ACMS8CB Dual Input Access Power Controllers
- Input
- Voltage: 24VDC from eFlow104NB and 12VDC from eFlow102NB
- Input PTC: 9A
- Outputs
- Voltage: 24VDC
- Eight (8) 24VDC independently controlled PTC outputs:
- a) Fail-Safe and/or Fail-Secure power outputs. Form " Relays rated 28VAC or VDC @ 2.5A
- b) Auxiliary power outputs (unswitched)
- c) Any combination of the above
- Outputs Ratings
- PTCs: 2.5A
- Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized)
- Green LED: FACP disconnect is triggered
- Three (3) PDS8CB Dual Input Power Distribution Modules
- Input
- Voltage: 24VDC from eFlow104NB and 12VDC from eFlow102NB
- Input PTCs: 9A
- Outputs
- Voltage: 24VDC
- Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2
- Individual outputs may be set to OFF position for servicing
- Outputs Ratings
- PTCs: 2.5A
- Indicators (LED)
- DC Output: Eight (8) individual output LEDs
- Green: 12VDC
- Red: 24VDC
- Environmental
- Temperature
- Operating: 0° C to 49° C (32° F to 120° F)
- Storage: 20° C to 70° C ( 4° F to 158° F)
- Relative Humidity
- Relative Humidity 85% +/5%
- BTU/Hr (approx.):
- 433 BTU/Hr
Specifications
Specifications
Altronix - T3MB755K1D - Product Categories
- Security
- Access Control
- Panels
Altronix - T3MB755K1D - Specifications
| UNSPSC Code | 43211700 |
|---|
