Brand: Altronix | SKU: 10386471

Altronix T3MB777K1D | 24-Door Altronix/Mercury Access and Power Integration Wired Kit - Trove3MBK3 with (3) eFlow104NB, (3) ACMS8CB, (3) PDS8CB, RSB1, RSB2

$6,409.80
Shipping calculated at checkout.

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description
Altronix T3MB777K1D | 24-Door Altronix/Mercury Access and Power Integration Wired Kit - Trove3MBK3 with (3) eFlow104NB, (3) ACMS8CB, (3) PDS8CB, RSB1, RSB2

Three (3) eFlow104NB Power Supply/Chargers / Input
Voltage: 120VAC, 60Hz, 13.5A max.
Main Fuse: 6.5A / 250V.
Output
Voltage: 24VDC @ 10A.
Auxiliary: 1A (unswitched).
Other: Overvoltage protection. Filtered and regulated.
Battery Backup
Type: Sealed lead acid or gel type.
Fuse Rating: 15A/32V.
Failover: Upon AC loss, instantaneous.
Fire Alarm Disconnect
Supervised: Latching or non-latching.
EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
AC Input: 120VAC is present.
DC Output: 24VDC is present.
Battery: Discharged or not connected.
Three (3) ACMS8CB Dual Input Access Power Controllers / Input
Voltage: 24VDC from eFlow104NB.
Input PTCs: 9A.
Outputs
Voltage: 24VDC.
Eight (8) 24VDC independently controlled PTC outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output PTCs: 2.5A.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
Three (3) PDS8CB Dual Input Power Distribution Modules / Input
Voltage: 24VDC from eFlow104NB.
Input PTC: 9A.
Outputs
Voltage: 24VDC.
Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Outputs Ratings
PTCs: 2.5A.
Indicators (LED)
DC Output: Eight (8) individual output LEDs.
Green: 12VDC
Red: 24VDC.
Environmental / Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
433 BTU/Hr.

Overview

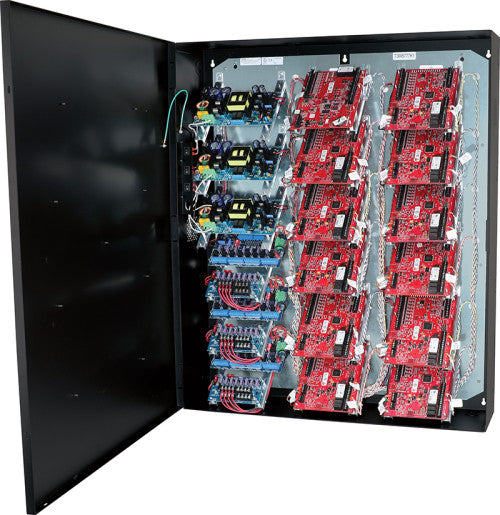

  • Altronix T3MB777K1 is a 24-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T3MB777K1 accommodates one (1) Intelligent Dual Reader Controller and eleven (11) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications. *Also compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt

Specifications

Altronix - T3MB777K1D - Overview

  • Altronix T3MB777K1 is a 24-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T3MB777K1 accommodates one (1) Intelligent Dual Reader Controller and eleven (11) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications. *Also compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt

Altronix - T3MB777K1D - Product Categories

  • Security
  • Access Control
  • Power Supplies

Altronix - T3MB777K1D - Specifications

Brand NameAltronix
Manufacturer Part NumberT3MB777K1D
Item Description24-Door Altronix/Mercury Access and Power Integration Wired Kit - Trove3MBK3 with (3) eFlow104NB, (3) ACMS8CB, (3) PDS8CB, RSB1, RSB2
Agency ListingsCE Compliant
Sales CategoryPower Supply
UNSPSC Code43211700
Weights (approximate):-
Product Weight:85.6 Lbs.
(42.27 kg).Shipping Weight:
106.4 Lbs.(48.26 kg).
