Brand: Altronix
|
SKU:
1030431
Altronix T3MK75F16D | 16-Door Access and Power Integration Kit - Trove3M3 with eFlow102NB, eFlow104NB, 2-ACM8CB, PD8ULCB, RSB2
Regular price
$2,073.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T3MK75F16D | 16-Door Access and Power Integration Kit - Tr...
Regular price
$2,073.07
Unit price
Description
Description
Altronix T3MK75F16D | 16-Door Access and Power Integration Kit - Trove3M3 with eFlow102NB, eFlow104NB, 2-ACM8CB, PD8ULCB, RSB2
Altronix T3MK75F16D kit consists of Trove3 enclosure and TM3 Mercury/Altronix backplane with 24VDC @ 10A and 12VDC @ 10A power supply/chargers, eight (8) PTC protected output power distribution module and two eight (8) PTC protected output access control modules. This kit also accommodates various combinations of Mercury boards for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.*Compatible with these authentic Mercury partners:AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt
Altronix T3MK75F16D kit consists of Trove3 enclosure and TM3 Mercury/Altronix backplane with 24VDC @ 10A and 12VDC @ 10A power supply/chargers, eight (8) PTC protected output power distribution module and two eight (8) PTC protected output access control modules. This kit also accommodates various combinations of Mercury boards for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.*Compatible with these authentic Mercury partners:AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt
Altronix - T3MK75F16D - Features and Specifications
- Power Supply/Charger - 1
- INPUT
- Voltage: 120VAC, 60Hz, 4.5A max.
- Main Fuse: 6.3A / 250V.
- OUTPUT
- Voltage: 24VDC @ 10A.
- Auxiliary: 1A (unswitched).
- Protection: Overvoltage protection. Filtered and regulated.
- Power Supply/Charger - 2
- INPUT
- Voltage: 120VAC, 60Hz, 3.5A max.
- Main Fuse: 5A / 250V.
- Both Power Supplies
- Battery Backup (not included)
- Type: Sealed lead acid or gel type.
- Fuse Rating: 15A/32VDC.
- Failover: Upon AC loss, instantaneous.
- Fire Alarm Disconnect
- Supervised: Latching or non-latching.
- EOL: 10K Resistor.
- Supervision
- AC Failure: Form “C” contacts.
- Battery: Form “C” contacts.
- Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
- Indicators LED
- AC Input: 120VAC is present.
- DC Output: Powered.
- Battery: Discharged or not connected.
- Two (2) ACM8CB Access Power Controllers
- INPUT
- Voltage: 24VDC from eFlow104NB.
- Main Fuse: 10A / 250V.
- OUTPUT
- Class 2 power-limited auto-resettable outputs.
- Voltage: 24VDC.
- Eight (8) 24VDC independently controlled PTC outputs:
- a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
- b) Any combination of the above.
- Output PTCs: 2.5A.
- Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
- PD8ULCB Power Distribution Module
- INPUT
- Voltage: 12VDC from eFlow102NB.
- Outputs
- Class 2 power-limited auto-resettable outputs.
- Voltage: 12VDC.
- PTCs: 2.5A.
- Indicators LED
- Green LED: DC Output.
Specifications
Specifications

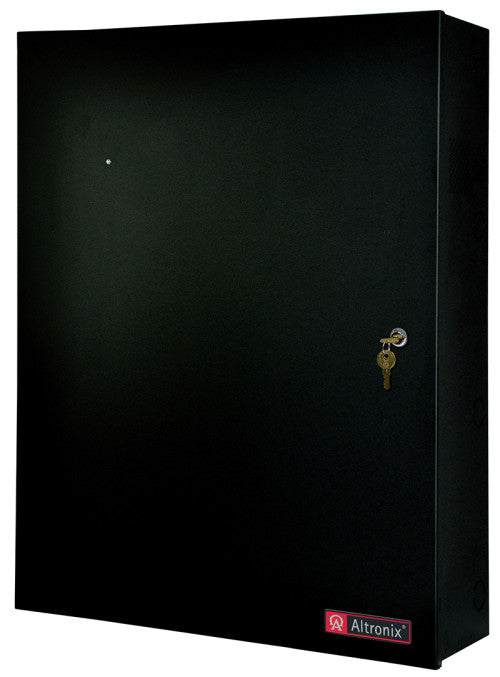

Altronix - T3MK75F16D - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
- Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
- 3/4" and 1" combination knockouts.
Altronix - T3MK75F16D - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 217 BTU/Hr.
Altronix - T3MK75F16D - Specifications
| Amp Hours | 11 TO 15 |
|---|---|
| Amps | 5.1 TO 10.0 |
| Product Type | BOXED POWER SUPPLY |
| Battery Charging | BATTERY CHARGING CIRCUIT |
| Sales Category | ELECTRIC BOXED POWER SUPPLY |
| Input Voltage | 120V AC |
| Output Voltage | SELECTABLE 12 OR 24 VOLTS DC |
| UL Listing | UL LISTED |
| UNSPSC Code | 43211700 |
| Agency Listing | CE Compliant |
Altronix - T3MK75F16D - Weights (approximate)
| Product Weight: | 84.2 Lbs. (38.2 kg). |
|---|---|
| Shipping Weight | 97.5 Lbs. (44.2 kg). |
Altronix - T3MK75F16D - Accessories
| LINQ2 | Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers |
|---|---|
| MM12 | Mounting Magnets, Twelve (12) Quantity per Pack |
| MM24 | Mounting Magnets, Twenty Four (24) Quantity per Pack |
| MM4 | Mounting Magnets, Four (4) Quantity per Pack |
| MM8 | Mounting Magnets, Eight (8) Quantity per Pack |
| WM100 | Magnetic Cable Tie Mounts |
| WM25 | Magnetic Cable Tie Mounts |
| WM5 | Magnetic Cable Tie Mounts |
