Brand: Altronix
|
SKU:
10266032

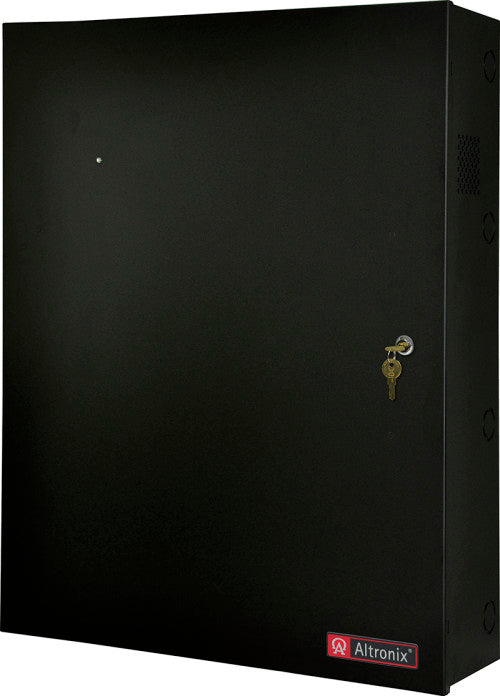

Altronix T3MK7716D | 16-Door Access and Power Integration Kit - Trove3M3 with 2-AL1024ULXB2, 2-ACM8CB, 2-PD8ULCB, RSB2
Regular price
$2,297.77
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T3MK7716D | 16-Door Access and Power Integration Kit - Tro...
Regular price
$2,297.77
Unit price
Description
Description
Altronix T3MK7716D | 16-Door Access and Power Integration Kit - Trove3M3 with 2-AL1024ULXB2, 2-ACM8CB, 2-PD8ULCB, RSB2
Altronix T3MK7716D kit consists of Trove3 enclosure and TM3 Altronix & Mercury backplane with two 24VDC @ 10A power supply/chargers, two eight (8) PTC protected output access control modules and two eight (8) PTC protected output power distribution modules. This kit also accommodates various combinations of Mercury* boards for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.*Also compatible with these authentic Mercury partners:AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2 LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt
Altronix T3MK7716D kit consists of Trove3 enclosure and TM3 Altronix & Mercury backplane with two 24VDC @ 10A power supply/chargers, two eight (8) PTC protected output access control modules and two eight (8) PTC protected output power distribution modules. This kit also accommodates various combinations of Mercury* boards for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.*Also compatible with these authentic Mercury partners:AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2 LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt
Altronix - T3MK7716D - Features and Specifications
- Power Supply/Chargers
- INPUT
- Voltage: 115VAC, 60Hz, 4.2A max.
- Main Fuse: 5A / 250V.
- OUTPUT
- Voltage: 24VDC.
- Current: 10A @ 24VDC continuous max.
- Other: Overvoltage protection. Filtered and regulated.
- Battery Backup (not included)
- Capacity: 7AH /12VDC (4 within enclosure), 40 AH / 65 AH (requires separate enclosure).
- Type: Sealed lead acid or gel type.
- Failover: Upon AC loss, instantaneous.
- Supervision
- AC Failure: Form “C” contacts.
- Battery: Form “C” contacts.
- Two (2) ACM8CB Access Power Controllers
- INPUT
- Voltage: 24VDC from AL1024ULXB2.
- Main Fuse: 10A / 250V.
- OUTPUT
- Class 2 power-limited auto-resettable outputs.
- Voltage: 24VDC.
- Eight (8) 24VDC independently controlled PTC outputs:
- a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
- b) Any combination of the above.
- Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
- Two (2) PD8ULCB Power Distribution Modules
- INPUT
- Voltage: 24VDC from AL1024ULXB2.
- Outputs
- Class 2 power-limited auto-resettable outputs.
- Voltage: 24VDC.
- PTCs: 2.5A.
- Indicators (LED)
- Green LED: DC Output.
Specifications
Specifications
Altronix - T3MK7716D - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
- Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
- 3/4" and 1" combination knockouts.
Altronix - T3MK7716D - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 289 BTU/Hr.
Altronix - T3MK7716D - Specifications
| Sales Category | POWER SUPPLY |
|---|---|
| UNSPSC Code | 43211700 |
| Agency Listing | CE Compliant |
Altronix - T3MK7716D - Weights (approximate)
| Product Weight: | 85.6 Lbs. (38.83 kg). |
|---|---|
| Shipping Weight | 98.8 Lbs. (44.82 kg). |
Altronix - T3MK7716D - Accessories
| MM12 | Mounting Magnets, Twelve (12) Quantity per Pack |
|---|---|
| MM24 | Mounting Magnets, Twenty Four (24) Quantity per Pack |
| MM4 | Mounting Magnets, Four (4) Quantity per Pack |
| MM8 | Mounting Magnets, Eight (8) Quantity per Pack |
| WM100 | Magnetic Cable Tie Mounts |
| WM25 | Magnetic Cable Tie Mounts |
| WM5 | Magnetic Cable Tie Mounts |
