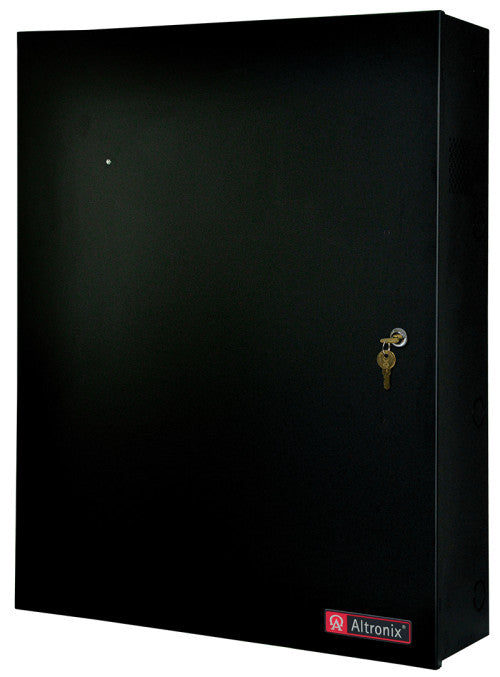

Altronix T3MK77F16 | 16-Door Access and Power Integration Kit - Trove3M3 with 2-eFlow104NB, 2-ACM8, 2-PD8UL, RSB2

$2,359.51

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix T3MK77F16 | 16-Door Access and Power Integration Kit - Trove3M3 with 2-eFlow104NB, 2-ACM8, 2-PD8UL, RSB2

Altronix T3MK77F16 kit consists of Trove3 enclosure and TM3 Mercury/Altronix backplane with two 24VDC @ 10A power supply/chargers, two eight (8) fuse protected output access control modules and two eight (8) fuse protected output power distribution modules. This kit also accommodates various combinations of Mercury boards for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.*Compatible with these authentic Mercury partners:AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt

Altronix - T3MK77F16 - Features and Specifications

Power Supply/Chargers
INPUT
Voltage: 120VAC, 60Hz, 9A max.
Main Fuse: 6.3A / 250V.
OUTPUT
Voltage: 24VDC @ 10A.
Auxiliary: 1A (unswitched).
Protection: Overvoltage protection. Filtered and regulated.
Battery Backup (not included)
Type: Sealed lead acid or gel type.
Fuse Rating: 15A/32VDC.
Failover: Upon AC loss, instantaneous.
Fire Alarm Disconnect
Supervised: Latching or non-latching.
EOL: 10K Resistor.
Indicators LED
AC Input: 120VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
Two (2) ACM8 Access Power Controllers
INPUT
Voltage: 24VDC from eFlow104NB.
Input Fuse: 10A / 250V.
OUTPUT
Voltage: 24VDC.
Eight (8) independently controlled fused outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output Fuses: 3.5A / 250V.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
Two (2) PD8UL Power Distribution Modules
INPUT
Voltage: 24VDC from eFlow104NB.
OUTPUT
Voltage: 24VDC.
Fuses: 3.5A/250V.
Indicators LED
Green LED: DC Output.

Specifications

Altronix - T3MK77F16 - Enclosure

Wall mount enclosure for indoor use.
Accommodates up to four (4) 12VDC/12AH Batteries.
Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
3/4" and 1" combination knockouts.

Altronix - T3MK77F16 - Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 289 BTU/Hr.

Altronix - T3MK77F16 - Specifications

UNSPSC Code	24102001
Agency Listing	CE Compliant

Altronix - T3MK77F16 - Weights (approximate)

Product Weight:	85.6 Lbs. (38.83 kg).
Shipping Weight	98.8 Lbs. (44.82 kg).

Altronix - T3MK77F16 - Accessories

LINQ2	Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers
MM12	Mounting Magnets, Twelve (12) Quantity per Pack
MM24	Mounting Magnets, Twenty Four (24) Quantity per Pack
MM4	Mounting Magnets, Four (4) Quantity per Pack
MM8	Mounting Magnets, Eight (8) Quantity per Pack
WM100	Magnetic Cable Tie Mounts
WM25	Magnetic Cable Tie Mounts
WM5	Magnetic Cable Tie Mounts
