Altronix T3MK77F16SDQ | 16-Door Altronix/Mercury Access and Power I...
Description
Description

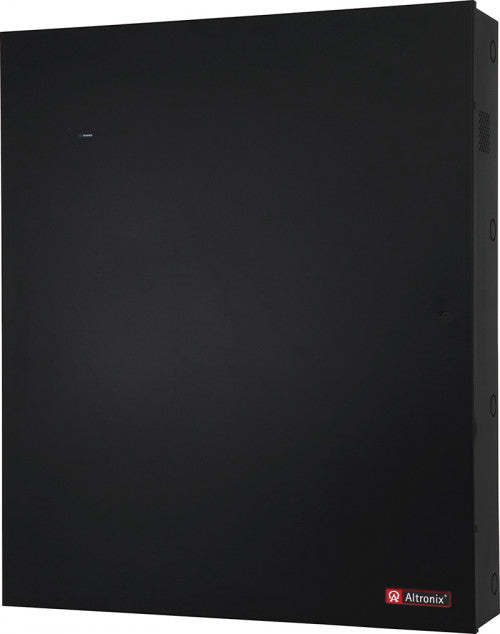

Altronix T3MK77F16SDQ kit consists of Trove3 enclosure and TM3 Altronix & Mercury backplane with two 24VDC @ 10A power supply/chargers, network communication module, two eight (8) PTC protected output access control modules and two eight (8) PTC protected dual output power distribution modules. This kit also accommodates various combinations of Mercury* boards for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T3MK77F16SDQ - Features
- 24VDC power supply/chargers
- Accommodates the following Mercury controllers: Mercury: LP1501, LP1502, LP2500, LP4502, MR16IN, MR16OUT, MR50, MR52, MR62e, MUX8
- Management interface for up to two (2) eFlow power supply/chargers
- 16 gauge galvanized steel backplane simplifies board layout and wire management
Specifications
Specifications
Altronix - T3MK77F16SDQ - Specifications
| Input Voltage | 120VAC, 60Hz, 9A max. |
|---|---|
| Outputs Voltage | 24 VDC |
| Battery Charging | 12VDC/12AH (4 within enclosure), 40AH/65AH (requires separate enclosure) |
| Supervision | AC Failure: Form “C” contacts. |
| Operating Temperature | 0° C to 49° C (32° F to 120° F). |
| Relative Humidity | 85% +/- 5%. |
| BTU/Hr. (approx.) | 289 BTU/Hr. |
| Dimensions | 30.12"W x 36.12"H x 7.06"D |
| Weights | 85.6 Lbs |
