Altronix T3MK77F16SQ | 16-Door Altronix/Mercury Access and Power In...
Description
Description

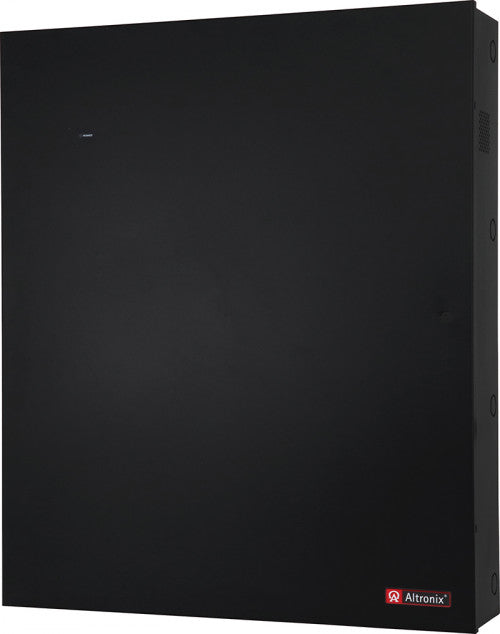

Altronix T3MK77F16SQ kit consists of Trove3 enclosure and TM3 Altronix & Mercury backplane with two 24VDC @ 10A power supply/chargers, network communication module, two eight (8) fuse protected output access control modules and two eight (8) fuse protected dual output power distribution modules. This kit also accommodates various combinations of Mercury* boards for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T3MK77F16SQ - Features
- 24VDC power supply/chargers
- Accommodates the following Mercury controllers: Mercury: LP1501, LP1502, LP2500, LP4502, MR16IN, MR16OUT, MR50, MR52, MR62e, MUX8
- 24VDC power supply/chargers- Accommodates the following Mercury controllers: Mercury: LP1501, LP1502, LP2500, LP4502, MR16IN, MR16OUT, MR50, MR52, MR62e, MUX8
- 16 gauge galvanized steel backplane simplifies board layout and wire management
- Enclosure accommodates up to four (4) 12VDC/12AH batteries
Specifications
Specifications
Altronix - T3MK77F16SQ - Specifications
| Input Voltage | 120VAC, 60Hz, 9A max. |
|---|---|
| Outputs Voltage | 24 VDC |
| Battery Charging | 12VDC/12AH (4 within enclosure), 40AH/65AH (requires separate enclosure) |
| Supervision | AC Failure: Form “C” contacts. |
| Operating Temperature | 0° C to 49° C (32° F to 120° F). |
| Relative Humidity | 85% +/- 5%. |
| BTU/Hr. (approx.) | 289 BTU/Hr. |
| Dimensions | 30.12"W x 36.12"H x 7.06"D |
| Weights | 85.6 Lbs |
