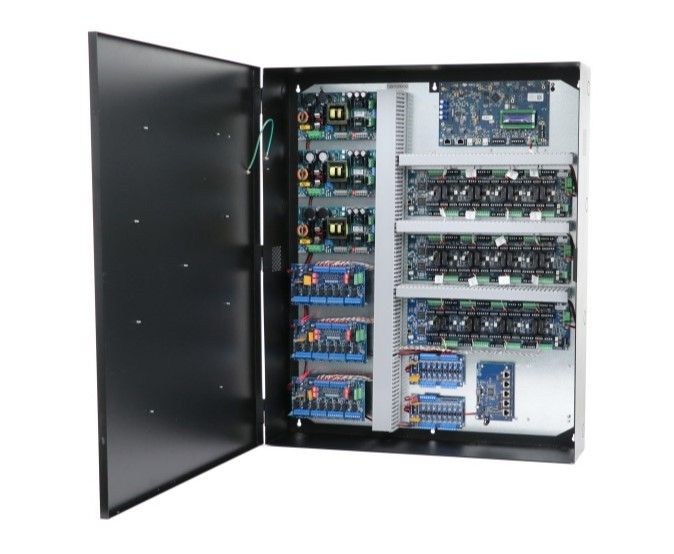

Altronix T3SH777XK1D is a 24-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Software House hardware. This unit provides ample power and dual voltage outputs to support Software House platform controllers and locking devices. The T3SH777XK1D accommodates up to one (1) iStar Ultra GCM/GCM G2 Controller and three (3) iStar Ultra ACM. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
Altronix - T3SH777XK1D - Features
- Three (3) eFlow104NB Power Supply/Chargers
- Input
- Voltage: 120VAC, 60Hz, 13.5A
- Input Fuse: 6.3A / 250V
- Output
- Voltage: 24VDC @ 10A
- Auxiliary: 1A (unswitched)
- Protection: Overvoltage protection. Filtered and regulated
- Battery Charging
- Capacity: 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure)
- Type: Sealed lead acid or gel type
- Failover: Upon AC loss, instantaneous
- (Batteries are sold separately)
- Fire Alarm Disconnect
- Supervised: Latching or non-latching
- EOL: 10K Resistor
- Supervision
- AC Failure: Form " contacts
- Battery: Form " contacts
- Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge
- Indicators LED
- AC Input: 120VAC is present
- DC Output: Powered
- Battery: Discharged or not connected
- Three (3) ACMS8CB Dual Input Access Power Controllers
- Input
- Voltage: 24VDC from eFlow104NB and 12VDC from VR6
- Input PTC: 9A
- Outputs
- Voltage: 24VDC
- Eight (8) 24VDC independently controlled PTC outputs:
- a) Fail-Safe and/or Fail-Secure power outputs. Form " Relays rated 28VAC or VDC @ 2.5A
- b) Auxiliary power outputs (unswitched)
- c) Any combination of the above
- Outputs Ratings
- PTCs: 2.5A
- Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized)
- Green LED: FACP disconnect is triggered
- Two (2) PDS16CB Dual Input Power Distribution Modules
- Input
- Voltage: 24VDC from eFlow104NB and 12VDC from VR6
- Input PTCs: 9A
- Outputs
- Voltage: 12VDC and/or 24VDC
- Any of the sixteen (16) power outputs are selectable to follow power Input 1 or Input 2
- Individual outputs may be set to OFF position for servicing
- Output PTCs: 2.5A
- Indicators (LED)
- DC Output: Sixteen (16) individual output LEDs
- Green: 12VDC
- Red: 24VDC
- Three (3) VR6 Voltage Regulators
- Input
- Voltage: 24VDC from eFlow104NB
- Output
- Voltage: 12VDC
- Current: 6A continuous
- Other: Surge suppression
- Indicators LED
- Input: 24VDC is present
- Output: Powered
- Environmental
- Temperature
- Operating: 0° C to 49° C (32° F to 120° F)
- Storage: 20° C to 70° C ( 4° F to 158° F)
- Relative Humidity
- Relative Humidity: 85% +/5%
- BTU/Hr. (approx.):
- 289 BTU/Hr
