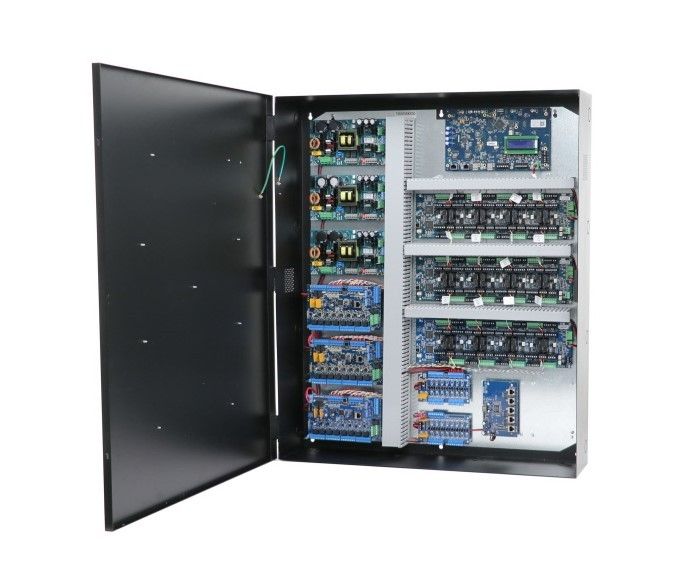

Altronix T3SH777XK1DQ | 24-Door Altronix/Software House Access and Power Integration Networked Wired Kit

Altronix - T3SH777XK1DQ - Features

• Three (3) eFlow104NB Power Supply/Chargers
• Input Voltage: 120VAC, 60Hz, 13.5A max
• Input Fuse: 6.3A / 250V
• Output Voltage: 24VDC @ 10A
• Auxiliary: 1A (unswitched)
• Protection: Overvoltage protection. Filtered and regulated
• Battery Charging
• Capacity: 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure
• Type: Sealed lead acid or gel type
• Failover: Upon AC loss, instantaneous
• (Batteries are sold separately)
• Fire Alarm Disconnect
• Supervised: Latching or non-latching
• EOL: 10K Resistor
• Supervision
• AC Failure: Form " contacts
• Battery: Form " contacts
• Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge
• Indicators LED
• AC Input: 120VAC is present
• DC Output: 24VDC is present
• Battery: Discharged or not connected
• Three (3) LINQ8ACMCB Networked Access Power Controllers
• Input
• Voltage: 24VDC from eFlow104NB and 12VDC from VR6
• Input PTC: 9A
• Outputs
• PTC protected power-limited outputs
• Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2
• Individual outputs may be set to OFF position for servicing
• Output PTCs:
• 2.5A
• Programming Features:
• Eight (8) Programmable Outputs:
• Fail-safe, Fail-secure or auxiliary outputs
• Input controlled or manually controlled through software
• High (over) and low (under) voltage and current monitoring by output
• Multiple outputs may be programmed to be triggered by a single Input
• Battery back-up by output
• Eight (8) Programmable Trigger Inputs:
• Normally open (NO), Normally colsed (NC) or open collector sink inputs
• Wet Input (5VDC 24VDC) with 10k resistor
• Any combination of the above
• Other Programmable Trigger Inputs:
• Monitor power supply(ies) input for voltage and currect limits (high/low)
• Input and output current calibration, Programmable timer events
• Programmable user levels, Enable or disable alerts by type
• Programmable alert reporting delay
• Indicators (LED)
• Green AC LED: indicates AC trouble condition
• Green BAT LED: indicates battery trouble condition
• Green FACP LED: indicates FACP disconnect is triggered
• Flashing Blue Heartbeat LED: indicates network connection
• Individual OUT1 OUT8 Red LEDs: indicate outputs are triggered
• Individual Voltage LEDs: indicate 12VDC (Green) or 24VDC (Red)
• Three (3) VR6 Voltage Regulators
• Input Voltage: 24VDC from eFlow104NB
• Output Voltage: 12VDC
• Current: 6A continuous
• Other: Surge suppression
• Indicators LED
• Input: 24VDC is present
• Output: Powered
• Two (2) PDS16CB Dual Input Power Distribution Modules
• Input
• Voltage: 24VDC from eFlow104NB and 12VDC from VR6
• Input PTCs: 9A
• Outputs
• Voltage: 12VDC and/or 24VDC
• Any of the sixteen (16) power outputs are selectable to follow power Input 1 or Input 2
• Individual outputs may be set to OFF position for servicing
• Outputs Ratings
• PTC: 2.5A
• Indicators (LED)
• DC Output: Sixteen (16) individual output LEDs
• Green: 12VDC
• Red: 24VDC
• NetWay5B 5-Port Hardened Switch
• Input
• 24VDC, current draw: 150mA
• Ethernet Ports:
• Five (5) 10/100/1000 Mbps data ports
• Connectivity: RJ45, auto-crossover
• Wire type: 4-pair CAT5 or better structured cable
• Distance: up to 100m
• Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
• Indicators (LED)
• Individual PoE On LEDs for each port
• Individual IP Link status, 10/100Base-T/active LEDs for each port
• Environmental
• Temperature
• Operating: 0° C to 49° C (32° F to 120° F)
• Storage: 20° C to 70° C ( 4° F to 158° F)
• Relative Humidity
• Relative Humidity: 85% +/5%
• BTU/Hr. (approx.):
• 289 BTU/Hr
