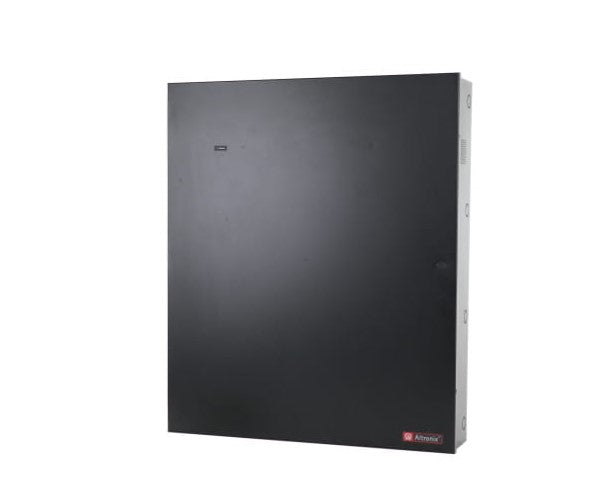

Altronix T3SK75F16 | 16-Door House Access and Power Integration Kit - Trove3SH3 with eFlow104NB, eFlow102NB, (2) ACM8, PD8UL, RSB2

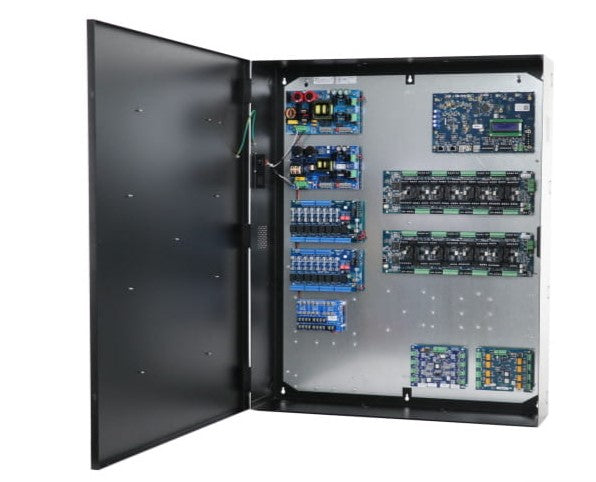

Altronix T3SK75F16 kit consists of Trove3 enclosure and TSH3 Software House/Altronix backplane with 24VDC @ 10A and 12VDC @ 10A power supply/chargers, two eight (8) fuse protected output access control modules and eight (8) fuse protected output power distribution module.This kit also accommodates various combinations of Software House boards for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Altronix - T3SK75F16 - Features and Specifications

Power Supply/Charger - 1
INPUT
Voltage: 120VAC, 60Hz, 4.5A max.
Main Fuse: 6.3A / 250V.
OUTPUT
Voltage: 24VDC @ 10A.
Auxiliary: 1A (unswitched).
Protection: Overvoltage protection. Filtered and regulated.
Power Supply/Charger - 2
INPUT
Voltage: 120VAC, 60Hz, 3.5A max.
Main Fuse: 5A / 250V.
Both Power Supplies
Battery Backup (not included)
Type: Sealed lead acid or gel type.
Fuse Rating: 15A/32VDC.
Failover: Upon AC loss, instantaneous.
Fire Alarm Disconnect
Supervised: Latching or non-latching.
EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
AC Input: 120VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
Two (2) ACM8 Access Power Controllers
INPUT
Voltage: 24VDC from eFlow104NB.
Input Fuse: 10A / 250V.
OUTPUT
Voltage: 24VDC.
Eight (8) 24VDC independently controlled fused outputs:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output Fuses: 3.5A/250V.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).
Green LED: FACP disconnect is triggered.
PD8UL Power Distribution Module
INPUT
Voltage: 12VDC from eFlow102NB.
Outputs
Voltage: 12VDC.
Fuses: 3.5A/250V.
Indicators LED
Green LED: DC Output.

Specifications

Altronix - T3SK75F16 - Dimensions (approximate)

36.12"W x 30.125"L x 7.06"H (917.5 mm W x 768.1 mm L x 179.3 mm H).

Altronix - T3SK75F16 - Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 217 BTU/Hr.

Altronix - T3SK75F16 - Specifications

UNSPSC Code	43211700
Agency Listing	CE Compliant

Altronix - T3SK75F16 - Weights (approximate)

Product Weight:	75.5 Lbs. (34.25 kg).
Shipping Weight	80 Lbs. (36.29 kg).

Altronix - T3SK75F16 - Accessories

LINQ2	Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers
MM12	Mounting Magnets, Twelve (12) Quantity per Pack
MM24	Mounting Magnets, Twenty Four (24) Quantity per Pack
MM4	Mounting Magnets, Four (4) Quantity per Pack
MM8	Mounting Magnets, Eight (8) Quantity per Pack
WM100	Magnetic Cable Tie Mounts
WM25	Magnetic Cable Tie Mounts
WM5	Magnetic Cable Tie Mounts
