Altronix T3SK77724SDV | 24-Door Altronix/Software House Access and ...
Description
Description

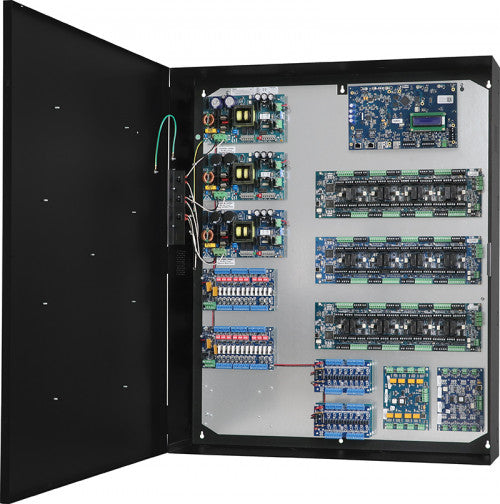

Altronix T3SK77724SDV kit consists of Trove3 enclosure and TSH3 Software House/Altronix backplane with three (3) 24VDC @ 10A power supply/chargers, two (2) twelve (12) PTC protected dual output access control modules, two (2) 12VDC 6A voltage regulators and two (2) sixteen (16) PTC protected dual output power distribution modules. This kit also accommodates various combinations of Software House boards for up to twenty-four (24) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Specifications
Specifications
Altronix - T3SK77724SDV - Specifications
| Input Volage | 220VAC |
|---|---|
| Output | 24VDC |
| Battery Charging | Sealed lead acid or gel type |
| Supervision | Form “C” contacts |
| Indicators LED | 220VAC is present |
| Operating Temperature | 0° C to 49° C (32° F to 120° F). |
| Storage Temperature | - 20° C to 70° C ( - 4° F to 158° F). |
| Relative Humidity | 85% +/- 5% |
| BTU/Hr. (approx.) | 327 BTU/Hr |
| Dimensions | 30.12"W x 36.12"H x 7.06"D |
| Weight | 87.2 Lbs |
