Brand: Altronix
|
SKU:
10266030
Altronix T3SSK7528 | 28-Door Altronix/Lenel-S2 Access and Power Integration Kit - Trove3SS3 with AL1024ULXB2, AL1012ULXB, (3) ACM8, ACM4, (2) PD16W, RSB2
Regular price
$2,621.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T3SSK7528 | 28-Door Altronix/Lenel-S2 Access and Power Int...
Regular price
$2,621.29
Unit price
Description
Description
Altronix T3SSK7528 | 28-Door Altronix/Lenel-S2 Access and Power Integration Kit - Trove3SS3 with AL1024ULXB2, AL1012ULXB, (3) ACM8, ACM4, (2) PD16W, RSB2
Main Fuse: 5A / 250V.
Current: 10A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Fusing: 5A / 250V.
Current: 10A @ 12VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Filtered and regulated
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
Battery: Form “C” contacts.
DC Output: Powered.
Battery: Discharged or not connected.
Input Fuse: 10A / 250V.
Eight (8) 24VDC independently controlled fused outputs for each ACM8.
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output Fuses: 3.5A/250V.
Green LED: FACP disconnect is triggered.
Input Fuse: 10A/32V.
Four (4) 24VDC independently controlled fused outputs for ACM4:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output Fuses: 3A/32V.
Green LED: FACP disconnect is triggered.
Output Fuses: 3.5A/250V.
Storage: - 20° C to 70° C ( - 4° F to 158° F).
AL1024ULXB2 Power Supply/Charger - 1 / Input
Voltage: 115VAC, 60Hz, 4.2A max.Main Fuse: 5A / 250V.
Output
Voltage: 24VDC.Current: 10A @ 24VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
AL1012ULXB Power Supply/Charger - 2 / Input
Voltage: 115VAC, 60Hz, 2.6A max.Fusing: 5A / 250V.
Output
Voltage: 12VDC.Current: 10A @ 12VDC continuous max.
Other: Overvoltage protection. Filtered and regulated.
Both Power Supplies:
Overvoltage protectionFiltered and regulated
Battery Backup
Capacity: 12AH/12VDC (2 within enclosure) 40AH/65AH (requires separate enclosure).Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
Supervision
AC Failure: Form “C” contacts.Battery: Form “C” contacts.
Indicators LED
Input: 115VAC is present.DC Output: Powered.
Battery: Discharged or not connected.
Three (3) ACM8 Access Power Controllers / Input
Voltage: 24VDC from AL1024ULXB2.Input Fuse: 10A / 250V.
Outputs
Voltage: 24VDC.Eight (8) 24VDC independently controlled fused outputs for each ACM8.
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output Fuses: 3.5A/250V.
Indicators (LED)
Red LEDs: Outputs are triggered (relays energized).Green LED: FACP disconnect is triggered.
ACM4 Access Power Controller / Input
Voltage: 24VDC from AL1024ULXB2.Input Fuse: 10A/32V.
Outputs
Voltage: 24VDC.Four (4) 24VDC independently controlled fused outputs for ACM4:
a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
b) Auxiliary power outputs (unswitched).
c) Any combination of the above.
Output Fuses: 3A/32V.
Indicators LED
Red LEDs: Outputs are triggered (relays energized).Green LED: FACP disconnect is triggered.
Two (2) PD16W Power Distribution Modules / Input
Voltage: 12VDC from AL1012ULXB.Outputs
Voltage: 12VDC.Output Fuses: 3.5A/250V.
Indicators LED
Green LED: DC Output.Environmental / Temperature
Operating: 0° C to 49° C (32° F to 120° F).Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.BTU/Hr (approx.):
289 BTU/Hr.Overview

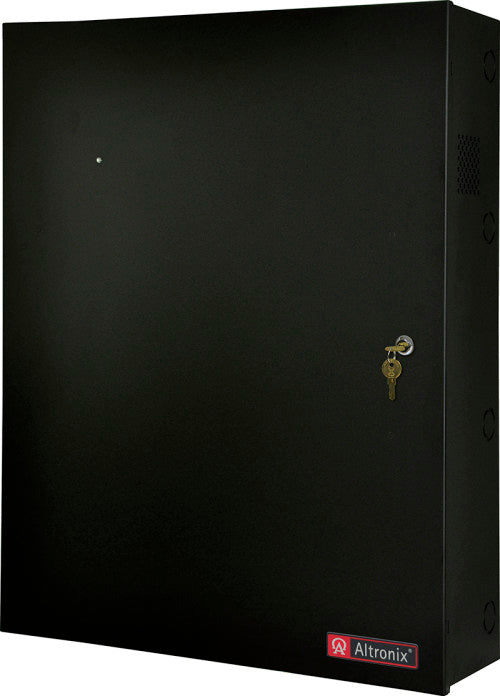

- Altronix T3SSK7528 kit consists of Trove3 enclosure, TSS3 Lenel-S2 (S2 Security Platform)/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) 12VDC @ 10A power supply/charger, four (4) fused access power controllers, and two (2) fused power distribution modules. This kit also accommodates two (2) S2-INST Installation Kit sFor Lenel-S2 (S2 Security Platform) S2 Network Node for up to twenty-eight (28) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Specifications
Specifications
Altronix - T3SSK7528 - Overview
- Altronix T3SSK7528 kit consists of Trove3 enclosure, TSS3 Lenel-S2 (S2 Security Platform)/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) 12VDC @ 10A power supply/charger, four (4) fused access power controllers, and two (2) fused power distribution modules. This kit also accommodates two (2) S2-INST Installation Kit sFor Lenel-S2 (S2 Security Platform) S2 Network Node for up to twenty-eight (28) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - T3SSK7528 - Product Categories
- Security
- Access Control
- Power Supplies
Altronix - T3SSK7528 - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | T3SSK7528 |
| Item Description | 28-Door Altronix/Lenel-S2 Access and Power Integration Kit - Trove3SS3 with AL1024ULXB2, AL1012ULXB, (3) ACM8, ACM4, (2) PD16W, RSB2 |
| Agency Listings | CE Compliant |
| Sales Category | Power Supply |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 83.5 Lbs. |
| (37.9 kg). | Shipping Weight: |
| 86.7 Lbs. | (39.3 kg). |
