Brand: Altronix
|
SKU:
10078220

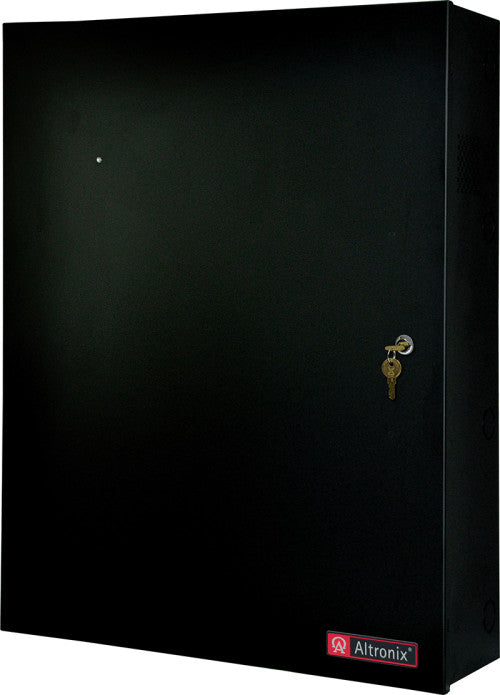

Altronix T3SSK75F28D | 28-Door Access and Power Integration Kit - Trove3SS3 with eFlow104NB, eFlow102NB, (3) ACM8CB, ACM4CB, (2) PD16WCB, RSB2
Regular price
$2,658.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix T3SSK75F28D | 28-Door Access and Power Integration Kit - T...
Regular price
$2,658.31
Unit price
Description
Description
Altronix T3SSK75F28D | 28-Door Access and Power Integration Kit - Trove3SS3 with eFlow104NB, eFlow102NB, (3) ACM8CB, ACM4CB, (2) PD16WCB, RSB2
Altronix T3SSK75F28D consists of a high-capacity enclosure with removable backplane, providing 12VDC @ 24VDC at 20A total for up to twenty-eight (28) locking devices or accessories. This unit easily combines Altronix power/accessories with various combinations of S2 boards in a streamlined package. Trove simplifies board layout and wire management, reducing installation time and labor costs.
Altronix T3SSK75F28D consists of a high-capacity enclosure with removable backplane, providing 12VDC @ 24VDC at 20A total for up to twenty-eight (28) locking devices or accessories. This unit easily combines Altronix power/accessories with various combinations of S2 boards in a streamlined package. Trove simplifies board layout and wire management, reducing installation time and labor costs.
Altronix - T3SSK75F28D - Features and Specifications
- Power Supply/Charger - 1
- INPUT
- Voltage: 120VAC, 60Hz, 4.5A max.
- Main Fuse: 6.3A / 250V.
- OUTPUT
- Voltage: 24VDC @ 10A total.
- Auxiliary: One (1) Aux outputs rated 1A (unswitched) each.
- Protection: Overvoltage protection. Filtered and regulated.
- Power Supply/Charger - 2
- INPUT
- Voltage: 120VAC, 60Hz, 3.5A max.
- Main Fuse: 5A / 250V.
- Both Power Supplies
- Battery Backup (not included)
- Type: Sealed lead acid or gel type.
- Fuse Rating: 15A/32VDC.
- Failover: Upon AC loss, instantaneous.
- Fire Alarm Disconnect
- Supervised: Latching or non-latching.
- EOL: 10K Resistor.
- Supervision
- AC Failure: Form “C” contacts.
- Battery: Form “C” contacts.
- Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
- Indicators LED
- AC Input: 120VAC is present.
- DC Output: Powered.
- Battery: Discharged or not connected.
- Three (3) ACM8CB Access Power Controllers
- INPUT
- Voltage: 24VDC from eFlow104NB.
- Input Fuse: 10A / 250V.
- OUTPUT
- Voltage: 24VDC.
- Eight (8) 24VDC independently controlled PTC outputs for each ACM8CB and Four (4) 24VDC independently controlled PTC outputs for ACM4CB:
- a) Fail-Safe and/or Fail-Secure power outputs.
- b) Auxiliary power outputs (unswitched).
- c) Any combination of the above.
- Output PTCs: 2.5A.
- Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
- ACM4 Access Power Controller
- INPUT
- Voltage: 24VDC from eFlow104NB
- Input Fuse: 10A/32V.
- Outputs
- Voltage: 24VDC.
- Eight (8) 24VDC independently controlled PTC outputs for each ACM8CB and Four (4) 24VDC independently controlled PTC outputs for ACM4CB:
- a) Fail-Safe and/or Fail-Secure power outputs.
- b) Auxiliary power outputs (unswitched).
- c) Any combination of the above.
- Output PTCs: 2.5A.
- Indicators LED
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
Specifications
Specifications
Altronix - T3SSK75F28D - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
- Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
- 3/4" and 1" combination knockouts.
Altronix - T3SSK75F28D - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 289 BTU/Hr.
Altronix - T3SSK75F28D - Specifications
| UNSPSC Code | 24102001 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - T3SSK75F28D - Weights (approximate)
| Product Weight: | 85.6 Lbs. (38.83 kg). |
|---|---|
| Shipping Weight | 98.8 Lbs. (44.82 kg). |
Altronix - T3SSK75F28D - Accessories
| LINQ2 | Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers |
|---|---|
| MM12 | Mounting Magnets, Twelve (12) Quantity per Pack |
| MM24 | Mounting Magnets, Twenty Four (24) Quantity per Pack |
| MM4 | Mounting Magnets, Four (4) Quantity per Pack |
| MM8 | Mounting Magnets, Eight (8) Quantity per Pack |
| WM100 | Magnetic Cable Tie Mounts |
| WM25 | Magnetic Cable Tie Mounts |
| WM5 | Magnetic Cable Tie Mounts |
