Description

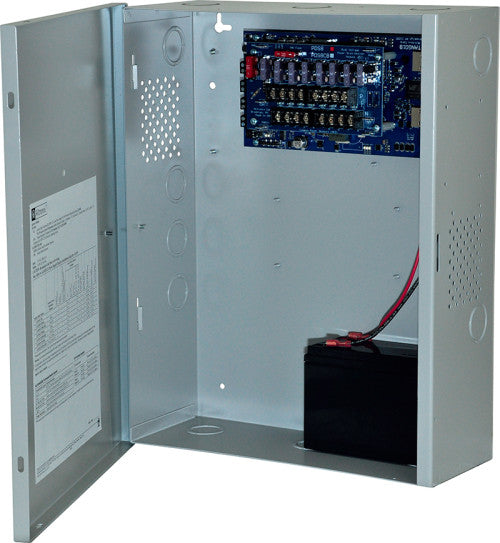

Altronix TANGO8P | PoE Driven Multi-output Power Supply/Charger, BC400 Enclosure

Altronix Tango8P PoE Driven Multi-Output Power Supply converts an IEEE802.3bt PoE input into eight (8) regulated 24VDC and/or 12VDC outputs up to 75W. It eliminates the need for a high voltage inside the enclosure. Tango8P is designed to support a single 12V LiFePO4 (Lithium Iron Phosphate) battery for 12VDC and 24VDC backup.

Altronix - TANGO8P - Features and Specifications

Ethernet Input
802.3bt PoE up to 90W or 802.3at up to 30W or 802.3af up to 15W
Power Output (when using 802.3bt 90W)
12VDC up to 6.25A (75W), and/or 24VDC up to 3A (75W).
Combined output not to exceed 75W.
When charging batteries:
12VDC up to 5.4A (65W) and/or 24VDC up to 2.7A (65W).
Combined output not to exceed 65W.
Ethernet Output
Pass-through Ethernet Port (data only).
Battery Charging Circuit
12VDC battery charger for Lithium Iron Phosphate Battery (LiFePO4 only).
Unique technology allows for single battery to backup 12VDC and/or 24VDC systems.
Indicators (LED)
Input: Indicates input voltage is present.
Output: Indicates normal operating condition.
PoE Type: PoE Class Indicator
Supervision: PoE Fail or BAT Fail.
PDS8/PDS8CB Power Distribution Module:
INPUT
12VDC and 24VDC from Tango1B, factory wired.
Main Fuse Rating 10A/32V.
OUTPUT
Fuse protected outputs rated @ 3A per output, non power-limited. Total output 20A max.
Indicators (LED)
Individual voltage LEDs
Green: 12VDC
Green and Red: 24VDC.

Specifications

Altronix - TANGO8P - Enclosure

Wall mount enclosure for indoor use.
Dimensions 12"W x 15.5"H x 4.5"D (304.8 mm W x 393.7 mm H x 114.3 mm D).
1.125" and 1.375" combination knockouts.

Altronix - TANGO8P - Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
85% +/- 5%.
BTU/Hr (approx.): 54 BTU/Hr.

Altronix - TANGO8P - Specifications

UNSPSC Code	39120000

Altronix - TANGO8P - Weights (approximate)

Product Weight:	9 Lbs. (4.08 kg).
Shipping Weight	10.3 Lbs. (4.67 kg).
