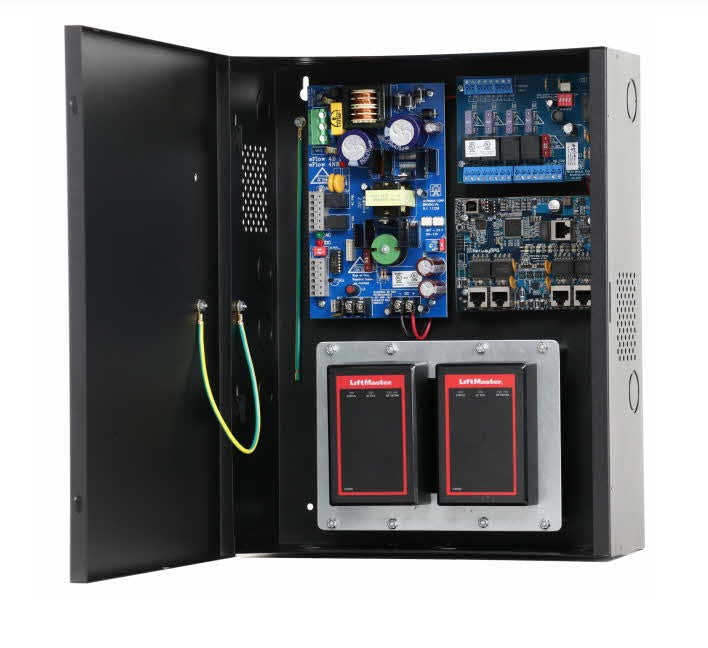

Altronix TLM400K1 consists of TM400 enclosure with 12VDC or 24VDC (factory set at 24VDC) @ 4A power supply/charger and four (4) fuse protected output access control module and 5-Port PoE Hardened Switch. This kit also accommodates LiftMaster Smart Access 2-Door Controller (CAP2D) modules for up to four (4) doors in a single enclosure. One (1) LMBK2 mounting bracket for LiftMaster CAP2D is factory installed. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - TLM400K1 - Features
- 12VDC or 24VDC power supply/charger
- Accommodates up to two (2) LiftMaster Smart Access 2-Door Controller (CAP2D)
- Twelve (12) double knockouts 1.125" (3/4" Conduit) / 1.375" (1" Conduit)
- 16 AWG galvanized steel backplane simplifies board layout and wire management
- Supervision- AC Fail
- Low Battery and Battery Presence
- Low power shutdown- CE European Conformity
Specifications
Specifications
Altronix - TLM400K1 - Specifications
| Input Voltage | 120VAC, 60Hz, 3.5A |
|---|---|
| Input Fuse | 5A/250V |
| Output Voltage | 24VDC |
| Battery Charging Capacity | Up to 40AH/65AH |
| Supervision AC Failure | Form “C" contacts |
| Input | 120VAC is present |
| Indicators LED | Input: 120VAC is present |
| Input Power | 12 or 24VDC from eFlow4NTB |
| Power Output | Maximum Power: Four (4) 10/100/1000 Mbps, PoE/PoE+ (rated up to 30W) ports, 60W (at 12VDC) or 120W (at 24VDC) total power, Integral surge |
| Operating Temperature | 0° C to 49° C (32° F to 120° F) |
| Storage Temperature | - 20° C to 70° C ( - 4° F to 158° F). |
| Relative Humidity | 85% +/- 5% |
| BTU/Hr. (approx.) | 90 BTU/Hr |
