Altronix TLM400K1D | 4-Door Altronix/LiftMaster Access and Power In...
Description
Description

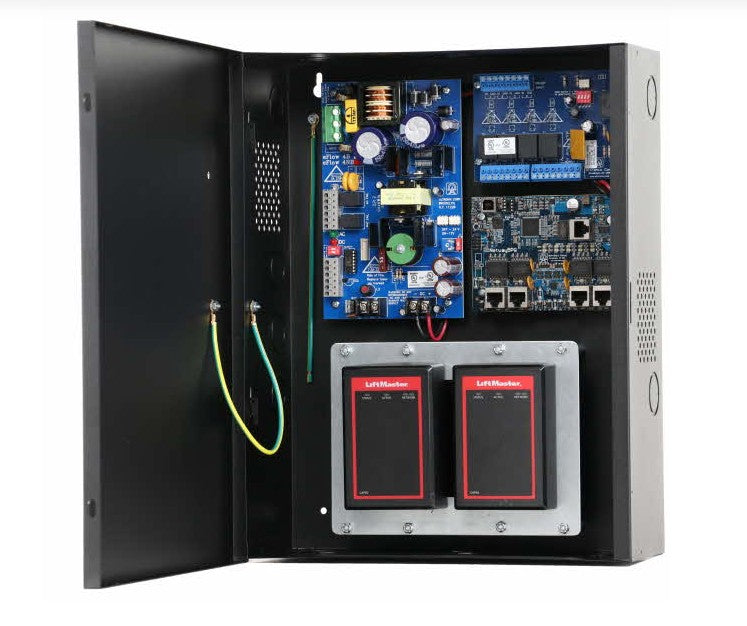

Altronix TLM400K1D consists of TM400 enclosure with 12VDC or 24VDC (factory set at 24VDC) @ 4A power supply/charger and four (4) PTC protected output access control module and 5-Port PoE Hardened Switch. This kit also accommodates LiftMaster Smart Access 2-Door Controller (CAP2D) modules for up to four (4) doors in a single enclosure. One (1) LMBK2 mounting bracket for LiftMaster CAP2D is factory installed. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - TLM400K1D - Features
- 12VDC or 24VDC power supply/charger-
- Accommodates up to two (2) LiftMaster Smart Access 2-Door Controller (CAP2D)-
- Twelve (12) double knockouts 1.125" (3/4" Conduit) / 1.375" (1" Conduit)
- 16 AWG galvanized steel backplane simplifies board layout and wire management-
- Low power shutdown- CE European Conformity
Specifications
Specifications
Altronix - TLM400K1D - Specifications
| Input Voltage | 120VAC, 60Hz, 3.5A |
|---|---|
| Input Fuse | 5A/250V |
| Output Voltage | 24VDC |
| Battery Charging Capacity | Up to 40AH/65AH |
| Supervision AC Failure | Form “C" contacts |
| Input | 120VAC is present |
| Input Power | 12 or 24VDC from eFlow4NTB |
| Ethernet Ports | Five (5) 10/100/1000 Mbps ports |
| Connectivity: | RJ45, auto-crossover |
| Wire type: | 4-pair CAT5e or higher structured cable |
| Distance: | up to 100m |
| Speed: | 10/100/1000 Mbps, half/full duplex, auto negotiation |
| Dimensions (H x W x D) | 15.5" x 12" x 4.5" (393.7mm x 304.8mm x 114.3mm) |
| Weight (approx.) | 8.55 lb. (3.88 kg) |
| Relative Humidity: | 85% +/- 5% |
| BTU/Hr. (approx.) | 90 BTU/Hr |
