Description
Description

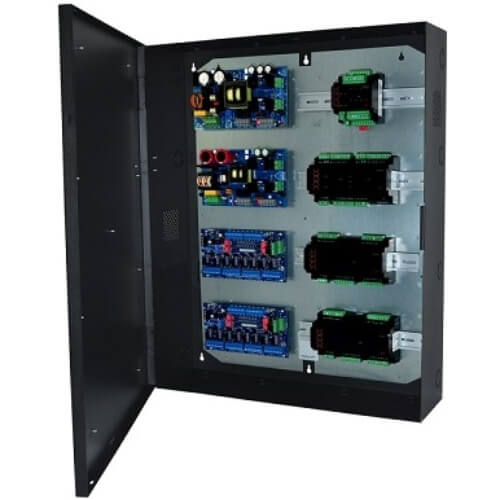

Altronix TROVE2DR2 | Access and Power Integration Enclosure with Backplane, Trove 2 Series
Altronix Trove2DR2 is designed to easily combine Altronix power and sub-assemblies withDIN Rail mountable products such as access controllers, building automation modules,network switches, utility boxes, terminal blocks and more. The removable backplaneaccommodates various lengths of DIN Rail to mount in vertically or horizontally, for anysecurity or industrial application.
Altronix - TROVE2DR2 - Features
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/7AH Batteries.
- 3/4" and 1" combination knockouts.
Specifications
Specifications
Altronix - TROVE2DR2 - Overview
- Trove2 enclosure with TDR2 Altronix backplane
- Backplane accommodates DIN Rail with or without Altronix power supplies/sub-assemblies:
- Includes Altronix Trove2 Enclosure and one (1) removable TDR2 backplane.
- Trove2 Enclosure
- 16 AWG powder coated steel enclosure
- Simplifies board layout and wire management
- Convenient knockout configuration:
- - One (1) single knockout 2.415" (2" Conduit).
- - Sixteen (16) double knockouts 1.362" (1" Conduit) / 1.115" (3/4" Conduit).
- Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.
Altronix - TROVE2DR2 - Specifications
| UNSPSC Code | 43211700.0 |
|---|---|
| Sales Category | Power Supply |
| Agency Listings | CE Compliant |
| Dimensions (approximate) | 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D). |
Altronix - TROVE2DR2 - Weights (approximate)
| Product Weight | 37.1 Lbs. (16.83 kg). |
|---|---|
| Shipping Weight | 40.85 Lbs. (18.53 kg). |
