Altronix TROVE2V2 | Altronix/HID-Vertx House Access and Power Integration Enclosure with Backplane, Trove 2 Series

Enclosure

• Wall mount enclosure for indoor use.
• Accommodates up to four (4) 12VDC/12AH Batteries.
• Dimensions 21.75"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
• 3/4" and 1" combination knockouts.

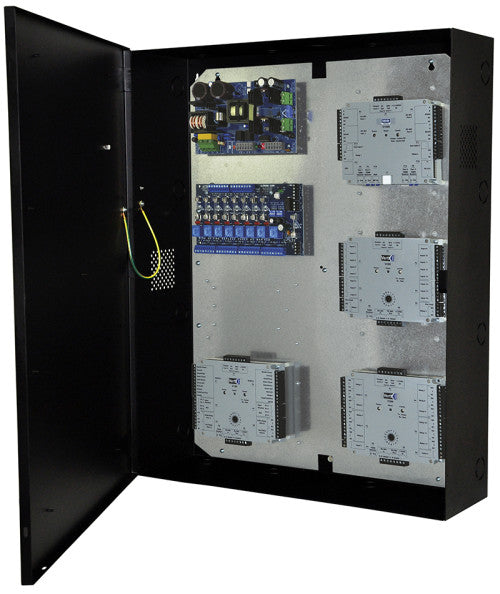

Trove2 enclosure with TV2 Altronix/HID VertX backplane

• Backplane accommodates a combination of HID VertX® controllers with or without Altronix accessories:
• - HID Vertx® V100, V200, V300, V1000, V2000, and Genetec Synergis Cloud Link
• - Altronix Power Supplies
• - Altronix Sub-Assemblies
• Includes Altronix Trove2 Enclosure and one (1) removable TV2 backplane
• Door accommodates TV2 backplane (sold separately).

Trove2 Enclosure

• 16 AWG powder coated steel enclosure
• Simplifies board layout and wire management
• Convenient knockout configuration:
• - One (1) single knockout 2.415” (2” Conduit).
• - Sixteen (16) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit).
• Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.

Weights (approximate)

Agency Listings
