Brand: Altronix
|
SKU:
10061975
Altronix TROVE3AM3 | Access and Power Integration Enclosure with Backplane, Trove 3 Series
Regular price
$1,270.75
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix TROVE3AM3 | Access and Power Integration Enclosure with Ba...
Regular price
$1,270.75
Unit price
Description
Description

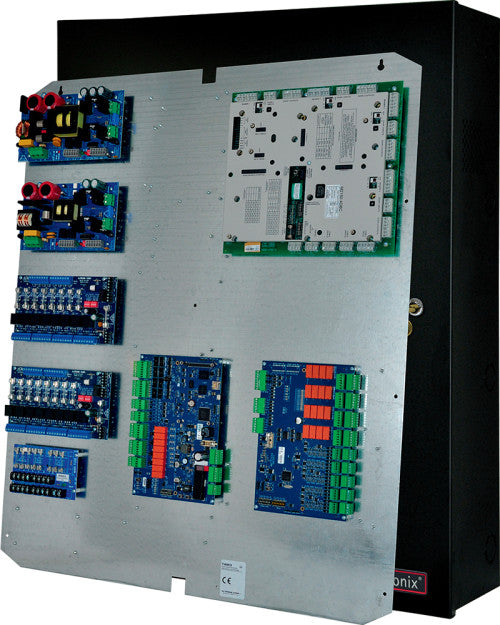

Altronix TROVE3AM3 | Access and Power Integration Enclosure with Backplane, Trove 3 Series
Trove3AM3 accommodates AMAG boards with or without Altronix power supplies and sub-assemblies for access systems.
Trove3AM3 accommodates AMAG boards with or without Altronix power supplies and sub-assemblies for access systems.
Altronix - TROVE3AM3 - Features and Specifications
- Trove3 enclosure with TAM3 Altronix/AMAG backplane
- Backplane accommodates a combination of AMAG Symmetry controllers with or without Altronix accessories:
- AMAG: Up to two (2) M2150-4DC or M2150-AC244, M2150-DBU, M2150-4DBC or M2150-8DBC modules.
- Up to four (4) M4000 modules.
- Altronix Power Supplies.
- Altronix Sub-Assemblies.
- Includes Altronix Trove3 Enclosure and one (1) removable TAM3 backplane
- Trove3 Enclosure
- 16 AWG powder coated steel enclosure with a single 2.415" center knockout on the top of the enclosure, two 2-Stage knockouts 1.95" and 1.5", plus (13) 2-Stage knockouts for 0.75" or 1" conduit.
- Includes: One (1) cam lock, one (2) tamper switches and mounting hardware.
Specifications
Specifications
Altronix - TROVE3AM3 - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/12AH Batteries.
- Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
- 3/4" and 1" combination knockouts.
Altronix - TROVE3AM3 - Specifications
| UNSPSC Code | 24102001 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - TROVE3AM3 - Weights (approximate)
| Product Weight: | 80 Lbs. (36.29 kg). |
|---|---|
| Shipping Weight | 92 Lbs. (41.73 kg). |
Altronix - TROVE3AM3 - Accessories
| TAM3 | Trove3 Backplane for Altronix/AMAG |
|---|
