Brand: Altronix
|
SKU:
742848
Altronix VB6 | Voltage Booster, Converts 24VAC or 24VDC to 56VDC @ 30W, 2 Outputs
Regular price
$84.86
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix VB6 | Voltage Booster, Converts 24VAC or 24VDC to 56VDC @ ...
Regular price
$84.86
Unit price
Description
Description

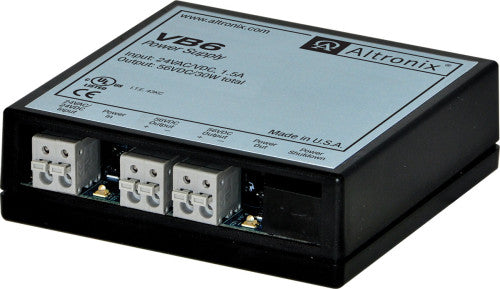

Altronix VB6 is a cost-effective 56VDC/30W UL Listed limited power supply. It is intended to power PoE related products such as the CAT5 to Coax cable Managed Ethernet Midspan receiver eBridge4PCRX and the transceiver with integral managed PoE/PoE+ switch eBridge4SK. VB6 provides two sets of output terminals to facilitate connection for up to two devices. It is powered by a 24VDC/24VAC Class 2 rated transformer/power supply.
Main Features
- Input and Output LEDs.
- Spring terminals.
Specifications
Specifications
Enclosure
- Modular plastic case. VB6
- Dimensions 3.5"W x 1"H x 3.5"D (88.89 mm W x 25.4 mm H x 88.89 mm D).
Input
- 24VAC @ 1.5A or 24VDC @ 1.5A.
Output
- Two (2) 56VDC outputs with up to 30W combined total power.
- Electronically filtered and regulated outputs.
- Built-in overload protection.
Temperature
- Operating 0ºC to 49ºC (32ºF to 120ºF).
- Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 15 BTU/Hr.
Weights (approximate)
| Product Weight | 0.25 Lbs. (0.11 kg). |
|---|---|
| Shipping Weight | 0.3 Lbs. (0.14 kg). |
Agency Listings
| UL Listed For: Information Technology Equipment (UL60950-1) | https://iq.ulprospector.com/en/profile?e=3010301 |
|---|---|
| cUL Listed For: CSA Standard C22.2 No.205-M1983, Signal Equipment | https://iq.ulprospector.com/en/profile?e=2998313 |
