Altronix VERTILINE166CD | CCTV Power Supply, 16 PTC Outputs, 24/28VAC @ 14A, 115VAC, 1U
Regular price
$890.33
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix VERTILINE166CD | CCTV Power Supply, 16 PTC Outputs, 24/28V...
Regular price
$890.33
Unit price
Description
Description

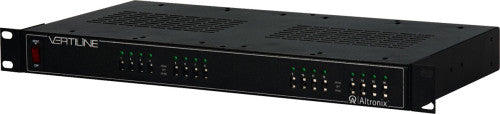

Vertiline166CD CCTV Rack Mount Power Supply provides 16 PTC protected power outputs in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. This unit features individually selectable 24VAC and/or 28VAC power outputs with surge suppression. Vertiline CCTV Rack Mount Power Supplies are also available in eight(8) and twenty-four(24) output models with various power ratings.
Main Features
- Sixteen (16) power LEDs.
- Illuminated master power disconnect circuit breaker with manual reset.
- IEC 320 - 3-wire grounded line cord (detachable).
- Removable terminal blocks with locking screw flange.
Specifications
Specifications
Enclosure
- Modular 1U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).
Input
- 115VAC 60 Hz., 4A.
Output
- Sixteen (16) individually selectable 24VAC or 28VAC power outputs with OFF position.
- 24VAC or 28VAC @ 14A max. total (0.875A per device, 2.5A max.).
- Sixteen (16) PTC protected outputs rated @ 2.5A.
- Main fuse rated @ 15A.
- Surge suppression.
Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%
- BTU/Hr. (approx.):
- 24VAC: 172 BTU/Hr.
- 28VAC: 201 BTU/Hr.
- System AC input VA requirement: 460VA.
Weights (approximate)
| Product Weight | 15.4 Lbs. (6.99 kg). |
|---|---|
| Shipping Weight | 16.7 Lbs. (7.57 kg). |
Agency Listings
| UL Listed For: Commercial CCTV Equipment (UL2044) | https://iq.ulprospector.com/en/profile?e=2863898 |
|---|---|
| cUL Listed For: CSA Standard C22.2 No.1-04, Audio, Video and Similar Equipment | https://iq.ulprospector.com/en/profile?e=2863922 |
