Brand: Altronix
|
SKU:
553013
Altronix VERTILINE24CD | CCTV Power Supply, 24 PTC Outputs, 24/28VAC @ 10A, 115VAC, 1U
Regular price
$715.91
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix VERTILINE24CD | CCTV Power Supply, 24 PTC Outputs, 24/28VA...
Regular price
$715.91
Unit price
Description
Description

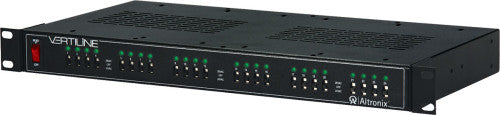

Altronix VERTILINE24CD | CCTV Power Supply, 24 PTC Outputs, 24/28VAC @ 10A, 115VAC, 1U
Vertiline24CD CCTV Rack Mount Power Supply provides 24 PTC protected power outputs in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. This unit features individually selectable 24VAC and/or 28VAC power outputs with surge suppression. Vertiline CCTV Rack Mount Power Supplies are also available in eight (8) and sixteen (16) output models with various power ratings.
Vertiline24CD CCTV Rack Mount Power Supply provides 24 PTC protected power outputs in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. This unit features individually selectable 24VAC and/or 28VAC power outputs with surge suppression. Vertiline CCTV Rack Mount Power Supplies are also available in eight (8) and sixteen (16) output models with various power ratings.
Altronix - VERTILINE24CD - Features and Specifications
- INPUT
- 115VAC 60 Hz., 3A.
- OUTPUT
- Twenty-four (24) individually selectable 24VAC or 28VAC power outputs with OFF position.
- 24VAC or 28VAC @ 10A max. total (0.417A per device, 2.5A max.).
- Twenty-four (24) PTC protected outputs rated @ 2.5A.
- Main fuse rated @ 10A.
- Surge suppression.
- Twenty-four (24) power LEDs.
- Illuminated master power disconnect circuit breaker with manual reset.
- IEC 320 - 3-wire grounded line cord (detachable).
- Removable terminal blocks with locking screw flange.
Specifications
Specifications
Altronix - VERTILINE24CD - Enclosure
- Modular 1U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).
Altronix - VERTILINE24CD - Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.):
- 24VAC: 123 BTU/Hr.
- 28VAC: 143 BTU/Hr.
- System AC input VA requirement: 345VA.
Altronix - VERTILINE24CD - Specifications
| Amps | 2.1 TO 3.0 |
|---|---|
| Product Type | BOXED POWER SUPPLY |
| Sales Category | CCTV POWER SUPPLY |
| UL Listing | UL LISTED |
| UNSPSC Code | 43211700 |
| Agency Listing | CE Compliant |
Altronix - VERTILINE24CD - Weights (approximate)
| Product Weight: | 17.75 Lbs. (8.05 kg). |
|---|---|
| Shipping Weight | 19.05 Lbs. (8.64 kg). |
