Brand: Altronix | SKU: 424219

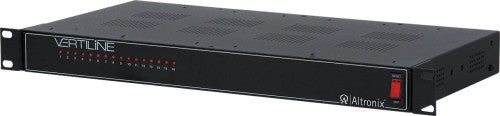

Altronix VERTILINE33D | CCTV Power Supply, 16 PTC Outputs, 12VDC @ 8A, 115VAC, 1U

$603.96

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Vertiline33D Rack Mount DC Power Supply provides sixteen (16) filtered and electronically regulated power outputs in a space saving 1U EIA 19" rack mount chassis.Vertiline Rack Mount Power Supplies are also available in 24VDC and eight (8) outputs configurations.

Main Features

Sixteen (16) power LEDs.
Illuminated master power disconnect circuit breaker with manual reset.
IEC 320 - 3-wire grounded line cord (detachable).
Removable terminal blocks with locking screw flange.

Specifications

Enclosure

Modular 1U standard EIA 19" rack mount chassis.
Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).

Input

115VAC 60 Hz, 1.5A input.

Output

12VDC outputs rated @ 8A total current max. (0.5A per device, 2.5A max.).
Sixteen (16) PTC protected power outputs.
Filtered and electronically regulated.

Temperature

Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 49 BTU/Hr.
System AC input VA requirement: 172.5VA.

Weights (approximate)

Product Weight	7.2 Lbs. (3.265 kg).
Shipping Weight	8.3 Lbs. (3.764 kg).

Documents and Downloads
