Brand: Altronix
|
SKU:
10216178

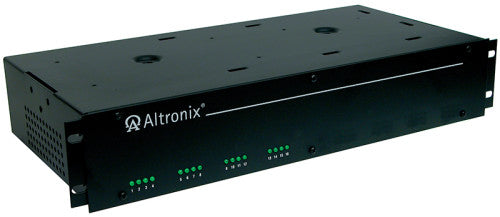

Altronix VERTILINE48M | 16 Fuse Protected Outputs Power Supply, 56VDC @ 6.5A, 115VAC, 2U
Regular price
$841.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix VERTILINE48M | 16 Fuse Protected Outputs Power Supply, 56V...
Regular price
$841.14
Unit price
Description
Description
Altronix Vertiline48M Rack Mount DC Power Supply provides sixteen (16) filtered and electronically regulated 56VDC power outputs in a space saving 2U EIA 19” rack mount chassis.
Specifications
Specifications
Enclosure
- Modular 2U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 3.25"H x 8.5"D (486 mm W x 83 mm H x 216 mm D).
- Allow 1/2U space on top and bottom of the unit for ventilation.
Input
- Voltage: 115VAC, 50/60Hz, 5A.
Output
- Voltage: 56VDC.
- Current: 6.5A max. total supply currect.
- Fusing: Individual outputs’ fuses rated @ 3.5A.
- Other: Short circuit and thermal overload protection. Filtered and regulated.
Indicators (LED)
- Master: Illuminated master power disconnect circuit breaker with manual reset.
- Output: Sixteen (16) individual LEDs.
Temperature
- Operating: 0º C to 49º C (32º F to 120º F).
- Storage: - 20º C to 70º C ( - 4º F to 158º F).
- Relative Humidity 85% +/- 5%
- BTU/Hr. (approx.):
- 186 BTU/Hr.
Weights (approximate)
| Product Weight | 13.75 Lbs. (6.24 kg). |
|---|---|
| Shipping Weight | 14.75 Lbs. (6.69 kg). |
