Brand: Altronix
|
SKU:
519612

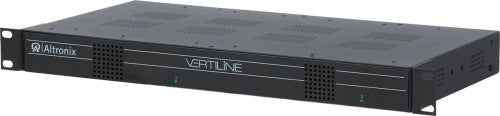

Altronix VERTILINE563 | Power Supply Charger, Dual, 2 Outputs, 56VDC @ 6A, 115VAC, 1U
Regular price
$605.22
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix VERTILINE563 | Power Supply Charger, Dual, 2 Outputs, 56VD...
Regular price
$605.22
Unit price
Description
Description
Altronix Vertiline563 is a EIA 19" 1U rack mountable dual independent power supply with optional battery backup that provides 56VDC. It is intended primarily to be used in conjunction with respective Altronix current and future products that requires 56VDC input such as: eBridge4PCRX, eBridge16PCRX & eBridge1PCRX multiport & single port IP/PoE over coax adapters. However, it can also be employed wherever 56VDC level power sources are needed. There are applications, which may require delivering power in a range of 48VDC to
57VDC over CAT5 cable for distances up to 100m. For these applications, transmission at the higher voltage is more efficient, as it reduces cable losses when compared to the lower voltage.
Main Features
- Two (2) AC LED indicators.
- IEC 320 - 3-wire grounded line cord (detachable).
- Unit can be rack or shelf mounted.
- 1U rack mount chassis for use in standard EIA 19" rack.
Specifications
Specifications
Enclosure
- Modular 1U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).
Input
- Input 115VAC 60Hz, 4.9A.
Output
- 56VDC @ 3A each output. (When using battery backup output rating is 56V/2.7A for respective outputs).
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.*
- *External batteries are optional.
- Automatic switch over to stand-by battery when AC fails.
Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 172 BTU/Hr.
Weights (approximate)
| Product Weight | 7 Lbs. (3.18 kg). |
|---|---|
| Shipping Weight | 8.3 Lbs. (3.76 kg). |
Agency Listings
| UL Listed For: Commercial CCTV Equipment (UL2044) | https://iq.ulprospector.com/en/profile?e=2863898 |
|---|---|
| cUL Listed For: Information Technology Equipment | https://iq.ulprospector.com/en/profile?e=2863922 |
Documents and Downloads
Documents and Downloads
- Altronix VERTILINE563 Data Sheet
- Altronix VERTILINE563 Data Sheet
- Altronix VERTILINE563 Fichas Tecnicas
- Altronix VERTILINE563 Installation Instructions
- Altronix VERTILINE563 Altronix_VERTILINE563_Power_Supply_Guia_de_Instalacion.pdf
- Altronix VERTILINE563 CAD Drawing
- Altronix VERTILINE563 Lifetime Warranty
