Brand: Altronix
|
SKU:
424221

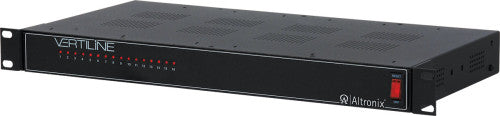

Altronix VERTILINE63D | Power Supply, 16 PTC Outputs, 24VDC @ 8A, 115VAC, 1U
Regular price
$601.41
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix VERTILINE63D | Power Supply, 16 PTC Outputs, 24VDC @ 8A, 1...
Regular price
$601.41
Unit price
Description
Description
Vertiline63D Rack Mount DC Power Supply provides sixteen (16) filtered and electronically regulated power outputs in a space saving 1U EIA 19" rack mount chassis. Vertiline Rack Mount Power Supplies are also available in 12VDC and eight (8) outputs configurations.
Main Features
- Sixteen (16) power LEDs.
- Illuminated master power disconnect circuit breaker with manual reset.
- IEC 320 - 3-wire grounded line cord (detachable).
- Removable terminal blocks with locking screw flange.
Specifications
Specifications
Enclosure
- Modular 1U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).
Input
- 115VAC 60 Hz, 3A input.
Output
- 24VDC outputs rated @ 8A total current max. (0.5A per device, 2.5A max.).
- Sixteen (16) PTC protected power outputs.
- Filtered and electronically regulated.
Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 98 BTU/Hr.
- System AC input VA requirement: 345VA.
Weights (approximate)
| Product Weight | 7.2 Lbs. (3.265 kg). |
|---|---|
| Shipping Weight | 8.3 Lbs. (3.764 kg). |
