Brand: Altronix
|
SKU:
973588
Altronix VERTILINE63DV | Power Supply, 16 PTC Outputs, 24VDC @ 8A, 220VAC, 1U
Regular price
$601.41
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix VERTILINE63DV | Power Supply, 16 PTC Outputs, 24VDC @ 8A, ...
Regular price
$601.41
Unit price
Description
Description
Altronix VERTILINE63DV | Power Supply, 16 PTC Outputs, 24VDC @ 8A, 220VAC, 1U

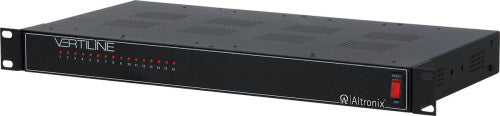

Vertiline63DV Rack Mount DC Power Supply provides sixteen (16) filtered and electronically regulated power outputs in a space saving 1U EIA 19" rack mount chassis. Vertiline Rack Mount Power Supplies are also available in 12VDC and eight (8) outputs configurations.
Vertiline63DV Rack Mount DC Power Supply provides sixteen (16) filtered and electronically regulated power outputs in a space saving 1U EIA 19" rack mount chassis. Vertiline Rack Mount Power Supplies are also available in 12VDC and eight (8) outputs configurations.
Altronix - VERTILINE63DV - Features and Specifications
- INPUT
- 220VAC 60 Hz, 1.5A input.
- OUTPUT
- 24VDC outputs rated @ 8A total current max. (0.5A per device, 2.5A max.).
- Sixteen (16) PTC protected power outputs.
- Filtered and electronically regulated.
- Sixteen (16) power LEDs.
- Illuminated master power disconnect circuit breaker with manual reset.
- IEC 320 - 3-wire grounded line cord (detachable).
- Removable terminal blocks with locking screw flange.
Specifications
Specifications
Altronix - VERTILINE63DV - Enclosure
- Modular 1U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).
Altronix - VERTILINE63DV - Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 98 BTU/Hr.
- System AC input VA requirement: 330VA.
Altronix - VERTILINE63DV - Specifications
| Environment Type | INDOOR |
|---|---|
| Type | POWER SUPPLY |
| Mounting Type | RACK |
| Voltage/Current Type | 115 VAC |
| UNSPSC Code | 39121031 |
| Agency Listing | CE Compliant |
Altronix - VERTILINE63DV - Weights (approximate)
| Product Weight: | 7.2 Lbs. (3.27 kg). |
|---|---|
| Shipping Weight | 8.3 Lbs. (3.76 kg). |
