Brand: Altronix | SKU: 424222

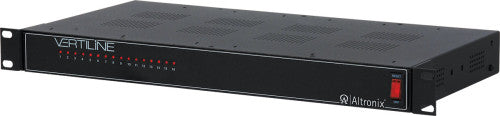

Altronix VERTILINE63TD | Power Supply, 16 PTC Outputs, 24VDC @ 16A, 115VAC, 1U

$744.50 $818.95

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Vertiline63TD Rack Mount DC Power Supply provides sixteen (16) filtered and electronically regulated power outputs in a space saving 1U EIA 19" rack mount chassis. Vertiline Rack Mount Power Supplies are also available in 12VDC and eight (8) outputs configurations.

Main Features

Sixteen (16) power LEDs.
Illuminated master power disconnect circuit breaker with manual reset.
IEC 320 - 3-wire grounded line cord (detachable).
Removable terminal blocks with locking screw flange.

Specifications

Enclosure

Modular 1U standard EIA 19" rack mount chassis.
Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).

Input

115VAC 60 Hz, 6A input.

Output

24VDC outputs rated @ 16A total current max. (1.0A per device, 2.5A max.).
Sixteen (16) PTC protected power outputs.
Filtered and electronically regulated.

Temperature

Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 197 BTU/Hr.
System AC input VA requirement: 690VA.

Weights (approximate)

Product Weight	7.95 Lbs. (3.606 kg).
Shipping Weight	9.05 Lbs. (4.105 kg).
