Brand: Altronix
|
SKU:
406303

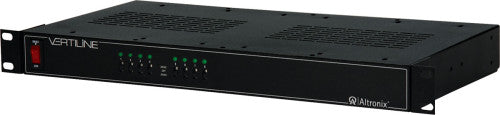

Altronix VERTILINE83D | CCTV Power Supply, 8 PTC Outputs, 24/28VAC @ 10A, 115/220VAC, 1U
Regular price
$666.50
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix VERTILINE83D | CCTV Power Supply, 8 PTC Outputs, 24/28VAC ...
Regular price
$666.50
Unit price
Description
Description
Vertiline83D CCTV Rack Mount Power Supply provides 8 PTC protected power outputs in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. This unit features individually selectable 24VAC and/or 28VAC power outputs with surge suppression. Vertiline CCTV Rack Mount Power Supplies are also available in sixteen (16) and twenty-four (24) output models with various power ratings.
Main Features
- Eight (8) power LEDs.
- Illuminated master power disconnect circuit breaker with manual reset.
- IEC 320 - 3-wire grounded line cord (detachable).
- Removable terminal blocks with locking screw flange.
Specifications
Specifications
Enclosure
- Modular 1U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).
Input
- Selectable 115VAC 60 Hz or 240VAC 50/60 Hz input.
- 115VAC 60 Hz., 3A.
- 240VAC 50/60 Hz., 1.5A.
Output
- Eight (8) individually selectable 24VAC or 28VAC power outputs with OFF position.
- 24VAC or 28VAC @ 10A max. total (1.25A per device, 2.5A max.).
- Eight (8) PTC protected outputs rated @ 2.5A.
- Main fuse rated @ 10A.
- Surge suppression.
Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%
- BTU/Hr. (approx.):
- 24VAC: 123 BTU/Hr.
- 28VAC: 143 BTU/Hr.
- System AC input VA requirement: 115VAC: 345VA, 230VAC: 360VA.
Weights (approximate)
| Product Weight | 9.3 Lbs. (4.22 kg). |
|---|---|
| Shipping Weight | 10.6 Lbs. (4.81 kg). |
Agency Listings
| UL Listed For: Commercial CCTV Equipment (UL2044) | https://iq.ulprospector.com/en/profile?e=2863898 |
|---|
Documents and Downloads
Documents and Downloads
- Altronix VERTILINE83D Data Sheet
- Altronix VERTILINE83D Data Sheet
- Altronix VERTILINE83D Fichas Tecnicas
- Altronix VERTILINE83D Installation Instructions
- Altronix VERTILINE83D Altronix_VERTILINE83D_CCTV_Power_Supply_Guia_de_Instalacion.pdf
- Altronix VERTILINE83D CAD Drawing
- Altronix VERTILINE83D Lifetime Warranty
