Brand: Altronix
|
SKU:
10216184
Altronix WAYPOINT1012V | Power Suppy/Charger, Outdoor, Single Output 12VDC @ 10A, 230VAC, WP3 Enclosure
Regular price
$558.18
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix WAYPOINT1012V | Power Suppy/Charger, Outdoor, Single Outpu...
Regular price
$558.18
Unit price
Description
Description
Altronix WAYPOINT1012V | Power Suppy/Charger, Outdoor, Single Output 12VDC @ 10A, 230VAC, WP3 Enclosure

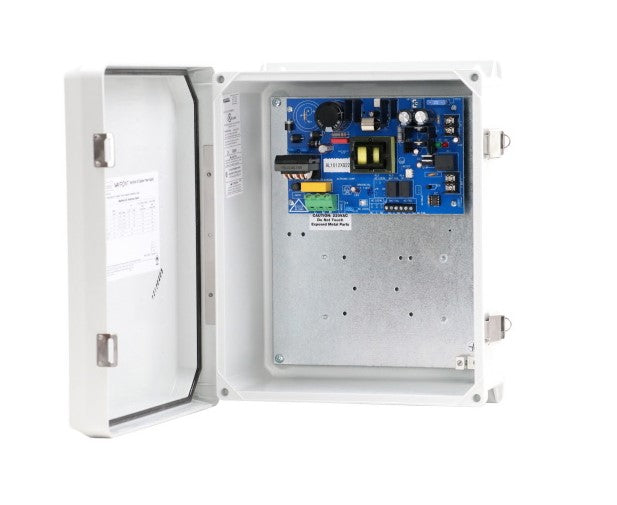

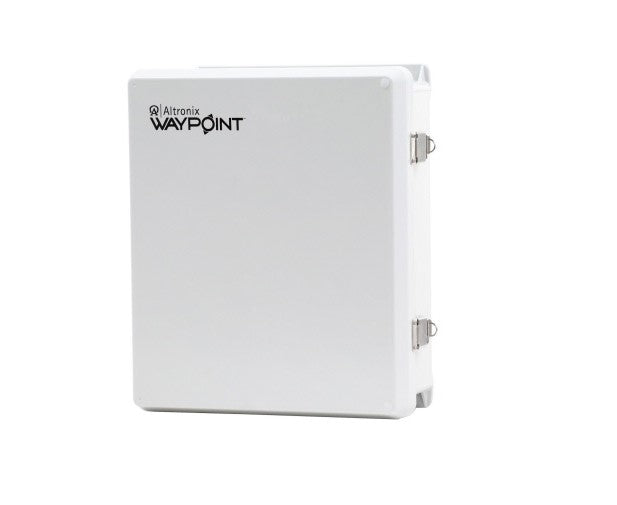

Altronix WayPoint1012V DC Outdoor Power Supply/Charger provides 12VDC and is designed to be conveniently located where power is required. Lightweight molded fiberglass reinforced polyester enclosure is NEMA 4/4X, IP66-11 Rated for outdoor use and accommodates up to two (2) 12VDC/7AH batteries. It features lockable stainless steel latches and integral flanges to simplify wall or pole mounting.
Altronix WayPoint1012V DC Outdoor Power Supply/Charger provides 12VDC and is designed to be conveniently located where power is required. Lightweight molded fiberglass reinforced polyester enclosure is NEMA 4/4X, IP66-11 Rated for outdoor use and accommodates up to two (2) 12VDC/7AH batteries. It features lockable stainless steel latches and integral flanges to simplify wall or pole mounting.
Altronix - WAYPOINT1012V - Features and Specifications
- INPUT
- 230VAC, 50/60Hz, 3A.
- OUTPUT
- 12VDC.
- 10A continuous supply current.
- Filtered and electronically regulated output.
- Thermal overload and short circuit protection.
- AC and DC power LED indicators.
- Ease of installation saves time and eliminates costly labor.
- Includes battery leads.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Maximum charge current 700mA.
- Automatic switch over to stand-by battery.
Specifications
Specifications
Altronix - WAYPOINT1012V - Enclosure
- NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Altronix - WAYPOINT1012V - Temperature
- Operating - 40° C to 60° C (-40° F to 140° F).
- Storage - 40° C to 70° C (-40° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 62 BTU/Hr.
Altronix - WAYPOINT1012V - Specifications
| Sales Category | POWER SUPPLY |
|---|---|
| UNSPSC Code | 43211700 |
| Agency Listing | CE Compliant |
Altronix - WAYPOINT1012V - Weights (approximate)
| Product Weight: | 9.2 Lbs. (5.19 kg). |
|---|---|
| Shipping Weight | 10.5 Lbs. (5.78 kg). |
Altronix - WAYPOINT1012V - Accessories
| PMK1 | Pole Mount Kit, For Outdoor Enclosures |
|---|---|
| WG1 | NEMA Rated Wire Gland Inlets |
