Brand: Altronix
|
SKU:
1030448
Altronix WAYPOINT102 | Outdoor DC Power Suppy/Charger, 12VDC @ 10A, 115VAC, WP3 Enclosure
Regular price
$598.87
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix WAYPOINT102 | Outdoor DC Power Suppy/Charger, 12VDC @ 10A,...
Regular price
$598.87
Unit price
Description
Description
Altronix WAYPOINT102 | Outdoor DC Power Suppy/Charger, 12VDC @ 10A, 115VAC, WP3 Enclosure

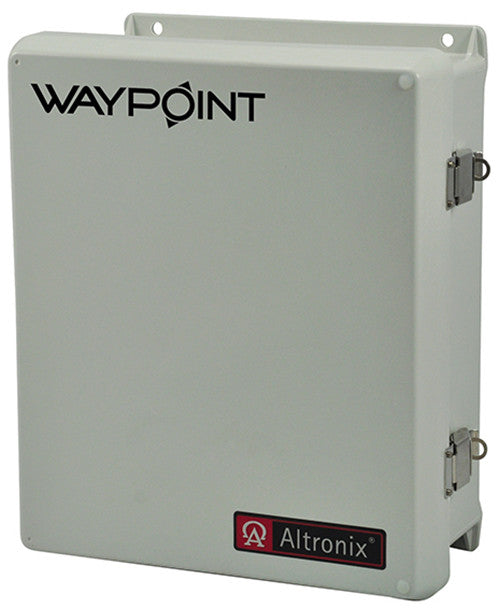

Altronix WayPoint102 DC Outdoor Power Supply/Charger provides 12VDC and is designed to be conveniently located where power is required. It also offers a suite of features that includes output disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Lightweight molded fiberglass reinforced polyester enclosure is NEMA 4/4X, IP66-11 Rated for outdoor use and accommodates up to two (2) 12VDC/7AH batteries. It features lockable stainless steel latches and integral flanges to simplify wall or pole mounting.
Altronix WayPoint102 DC Outdoor Power Supply/Charger provides 12VDC and is designed to be conveniently located where power is required. It also offers a suite of features that includes output disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Lightweight molded fiberglass reinforced polyester enclosure is NEMA 4/4X, IP66-11 Rated for outdoor use and accommodates up to two (2) 12VDC/7AH batteries. It features lockable stainless steel latches and integral flanges to simplify wall or pole mounting.
Altronix - WAYPOINT102 - Features and Specifications
- INPUT
- Voltage: 120VAC, 60Hz, 3.5A max.
- Fusing: 5A/250V.
- OUTPUT
- Voltage: 12VDC.
- Current: 10A continuous max.
- Auxiliary: Power-limited @ 1A (unswitched).
- Other: Overvoltage protection. Filtered and regulated.
- Battery Backup (not included)
- Type: Sealed lead acid or gel type.
- Fuse Rating: 15A @ 32VDC.
- Failover: Upon AC loss, instantaneous.
- Fire Alarm Disconnect
- Supervised: Latching or non-latching.
- EOL: 10K Resistor.
- Supervision
- AC Failure: Form “C” contacts.
- Battery: Form “C” contacts.
- Low DC Power Shutdown:
- Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Specifications
Specifications
Altronix - WAYPOINT102 - Enclosure
- NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Altronix - WAYPOINT102 - Temperature
- Operating - 40° C to 60° C (-40° F to 140° F).
- Storage - 40° C to 70° C (-40° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 61 BTU/Hr.
Altronix - WAYPOINT102 - Specifications
| Amp Hours | 6 TO 10 |
|---|---|
| Amps | 5.1 TO 10.0 |
| Product Type | BOXED POWER SUPPLY |
| Battery Charging | BATTERY CHARGING CIRCUIT |
| Sales Category | ELECTRIC BOXED POWER SUPPLY |
| Output Voltage | SELECTABLE 12 OR 24 VOLTS DC |
| UL Listing | UL LISTED |
| UNSPSC Code | 43211700 |
Altronix - WAYPOINT102 - Weights (approximate)
| Product Weight: | 9 Lbs. (4.08 kg). |
|---|---|
| Shipping Weight | 10.3 Lbs. (4.67 kg). |
