Description

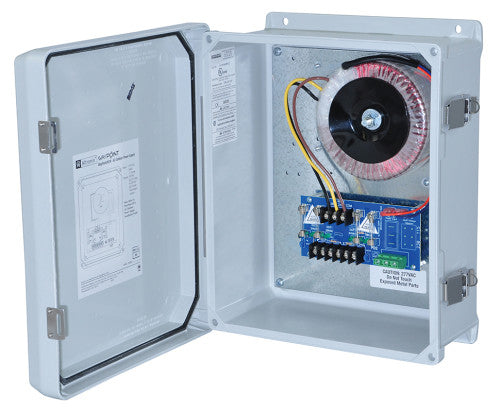

WayPoint-307A Outdoor Power Supply provides 24VAC and/or 28VAC distributed via two outputs for powering CCTV Cameras, heaters and other video accessories.

Main Features

Individual power output LEDs.
Illuminated master power switch.
Spare fuses included.

Specifications

Enclosure

NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).

Input

Input: 277VAC, 60Hz, 1.75A.

Output

Output options:
a. 24VAC @ 12.5A max.
b. 28VAC @ 10A max.
c. Both 24VAC and 28VAC not to exceed 10A max.
Output fuses rated @ 15A 32V.

Temperature

Operating Temperature: - 20º C to 50º C ( -4º F to 122º F).
Storage Temperature: -40ºC to 70ºC ( -40ºF to 158ºF).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 154 BTU/Hr.
System AC input VA requirement: 484.75VA.

Weights (approximate)

Product Weight	15.45 Lbs. (7.01 kg).
Shipping Weight	16.75 Lbs. (7.6 kg).
