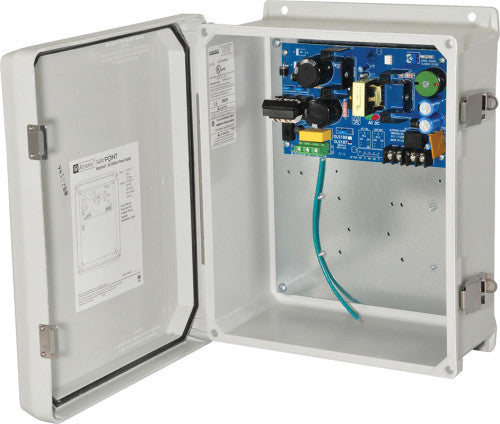

Altronix WAYPOINT7V | Power Supply/Charger, Outdoor, Single Output 12/24VDC @ 6A, 230VAC, WP3 Enclosure
Regular price
$469.18
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix WAYPOINT7V | Power Supply/Charger, Outdoor, Single Output ...
Regular price
$469.18
Unit price
Description
Description
Altronix WayPoint7V DC Outdoor Power Supply/Charger provides 12VDC or 24VDC and is designed to be conveniently located where power is required. Lightweight molded fiberglass reinforced polyester enclosure is NEMA 4/4X, IP66-11 Rated for outdoor use and accommodates up to two (2) 12VDC/7AH batteries. It features lockable stainless steel latches and integral flanges to simplify wall or pole mounting.
Main Features
- AC and DC power LED indicators.
- Ease of installation saves time and eliminates costly labor.
- Includes battery leads.
Specifications
Specifications
Enclosure
- NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Input
- 230VAC, 50/60Hz, 0.95A.
Output
- 12VDC or 24VDC selectable output.
- 6A continuous supply current.
- Filtered and electronically regulated output.
- Thermal overload and short circuit protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery.
Temperature
- Operating - 40° C to 60° C (-40° F to 140° F).
- Storage - 40° C to 70° C (-40° F to 158° F).
- Relative Humidity 85% +/- 5%
- BTU/Hr. (approx.):
- 12VDC: 37 BTU/Hr.
- 24VDC: 74 BTU/Hr.
- System AC input VA requirement: 209VA.
Weights (approximate)
| Product Weight | 9.2 Lbs. (5.19 kg). |
|---|---|
| Shipping Weight | 10.5 Lbs. (5.78 kg). |
Documents and Downloads
Documents and Downloads
- Altronix WAYPOINT7V Data Sheet
- Altronix WAYPOINT7V Data Sheet
- Altronix WAYPOINT7V Installation Instructions
- Altronix WAYPOINT7V Installation Instructions prior to Jan. 5, 2015
- Altronix WAYPOINT7V Altronix_WAYPOINT7V_Power_Supply_Guia_de_Instalacion.pdf
- Altronix WAYPOINT7V Revit File
- Altronix WAYPOINT7V Lifetime Warranty
