Brand: Altronix
|
SKU:
304877

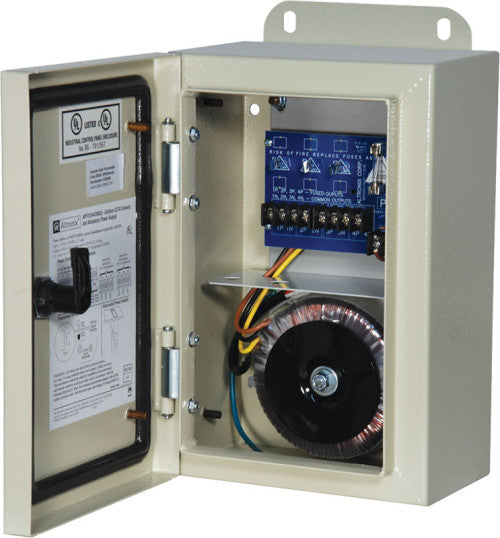

Altronix WPTV244300UL | CCTV Power Supply, Outdoor, 1 Fused and 3 PTC Outputs, 24/28VAC @ 12.5A, 115VAC, WP1 Enclosure
Regular price
$318.34
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix WPTV244300UL | CCTV Power Supply, Outdoor, 1 Fused and 3 P...
Regular price
$318.34
Unit price
Description
Description
Altronix WPTV244300UL | CCTV Power Supply, Outdoor, 1 Fused and 3 PTC Outputs, 24/28VAC @ 12.5A, 115VAC, WP1 Enclosure
Altronix WPTV244300UL provides power via four (4) protected outputs for CCTV cameras, heaters, and other video accessories.
Altronix WPTV244300UL provides power via four (4) protected outputs for CCTV cameras, heaters, and other video accessories.
Altronix - WPTV244300UL - Features and Specifications
- INPUT
- 115VAC, 50/60Hz, 2.7A.
- Four (4) protected outputs:
- One (1) fuse protected non power-limited output rated at 15A/32VA.
- Three (3) Class 2 Rated PTC protected power-limited outputs rated @ 2.5A (auto-resettable).
- 24VAC @ 12.5A (300VA) supply current or 28VAC @ 10A (280VA) supply current
- Surge suppression.
- AC power LED.
- Illuminated power disconnect circuit breaker with manual reset.
- Spare fuses provided.
- NEMA 4 Rated enclosure for outdoor use.
Specifications
Specifications
Altronix - WPTV244300UL - Enclosure
- NEMA 4/IP 65 Rated enclosure for outdoor use.
- Dimensions 8"W x 12"H x 6"D (203.2 mm W x 304.8 mm H x 152.4 mm D).
Altronix - WPTV244300UL - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.):
- 24VAC: 114 BTU/Hr.
- 28VAC: 106 BTU/Hr.
- System AC input VA requirement: 310.5VA.
Altronix - WPTV244300UL - Specifications
| Environment Type | OUTDOOR |
|---|---|
| Mounting Type | WALL |
| Type | POWER SUPPLY |
| Voltage/Current Type | 115 VAC |
| UNSPSC Code | 39121031 |
| Agency Listing | CE Compliant |
Altronix - WPTV244300UL - Weights (approximate)
| Product Weight: | 15.5 Lbs. (7.03 kg). |
|---|---|
| Shipping Weight | 16.4 Lbs. (7.28 kg). |
Altronix - WPTV244300UL - Accessories
| PMK1 | Pole Mount Kit, For Outdoor Enclosures |
|---|---|
| WG1 | NEMA Rated Wire Gland Inlets |
