Brand: Altronix
|
SKU:
553027

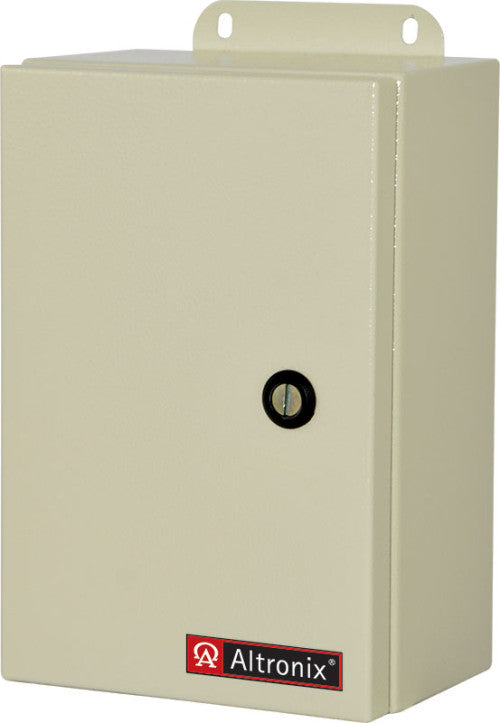

Altronix WPTV248175ULCB | CCTV Power Supply, Outdoor, 8 PTC Outputs, 24/28VAC @ 7A, 115VAC, WP1 Enclosure
Regular price
$532.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix WPTV248175ULCB | CCTV Power Supply, Outdoor, 8 PTC Outputs...
Regular price
$532.74
Unit price
Description
Description
Altronix WPTV248175ULCB outdoor CCTV Power Supply provides power via eight (8) PTC protected protected Class 2 Rated power-limited outputs for CCTV cameras, heaters, and other video accessories.
Main Features
- Secondary fuse rated @ 5A/250V.
- AC power LED.
- Power ON/OFF switch.
- Spare fuses provided. (all models w/primary and/or secondary fuses).
- NEMA 4 Rated enclosure for outdoor use.
Specifications
Specifications
Enclosure
- NEMA 4/IP 65 Rated enclosure for outdoor use.
- Dimensions 8"W x 12"H x 6"D (203.2 mm W x 304.8 mm H x 152.4 mm D).
Input
- 115VAC, 50/60Hz, 1.76A.
Output
- Eight (8) Class 2 Rated PTC protected powerlimited outputs (auto-resettable).
- 24VAC @ 7A (170VA) supply current (0.438A per device, 3.5A max.) or 28VAC @ 6.25A (175VA) supply current (0.375A per device, 3.5A max.).
- Outputs are rated @ 2.5A.
- Surge suppression.
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 89 BTU/Hr.
- System AC input VA requirement: 202.4VA.
Weights (approximate)
| Product Weight | 15.3 Lbs. (6.9 kg). |
|---|---|
| Shipping Weight | 16.4 Lbs. (7.44 kg). |
Agency Listings
| UL Listed For: Commercial CCTV Equipment (UL2044) | https://iq.ulprospector.com/en/profile?e=2863898 |
|---|---|
| cUL Listed For: CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment | https://iq.ulprospector.com/en/profile?e=2863922 |
Documents and Downloads
Documents and Downloads
- Altronix WPTV248175ULCB Data Sheet
- Altronix WPTV248175ULCB Data Sheet
- Altronix WPTV248175ULCB Fichas Tecnicas
- Altronix WPTV248175ULCB Installation Instructions
- Altronix WPTV248175ULCB Altronix_WPTV248175ULCB_CCTV_Power_Supply_Guia_de_Instalacion.pdf
- Altronix WPTV248175ULCB CAD Drawing
- Altronix WPTV248175ULCB Revit File
- Altronix WPTV248175ULCB Lifetime Warranty
