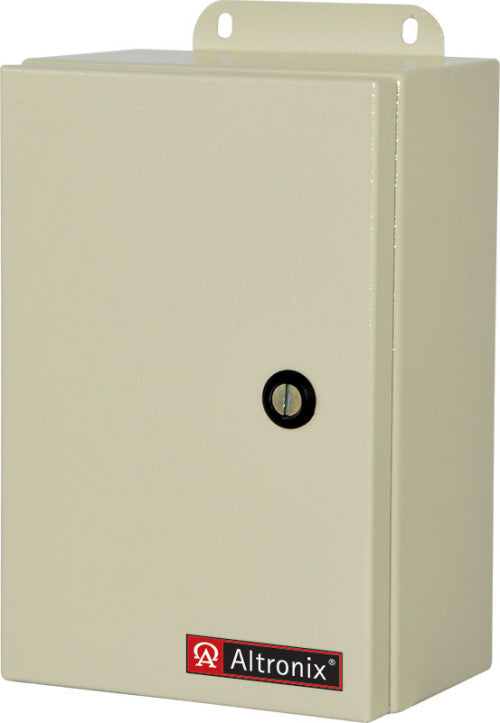

Altronix WPTV248ULCB | CCTV Power Supply, Outdoor, 8 PTC Outputs, 24/28VAC @ 3.5A, 115VAC, WP1 Enclosure

$358.55

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix WPTV248ULCB provides 24VAC or 28VAC distributed via eight (8) Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters, and other video accessories.

Main Features

Secondary fuse rated @ 5A/250V.
AC power LED.
Power ON/OFF switch.
NEMA 4 Rated enclosure for outdoor use.

Specifications

Enclosure

NEMA 4/IP 65 Rated enclosure for outdoor use.
Dimensions 8"W x 12"H x 6"D (203.2 mm W x 304.8 mm H x 152.4 mm D).

Input

115VAC, 50/60Hz, 0.9A.

Output

Eight (8) Class 2 Rated PTC protected powerlimited outputs (auto-resettable).
24VAC @ 3.5A (85VA) supply current (0.438A per device, 3.5A max.) or 28VAC @ 3A (85VA) supply current (0.375A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.

Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 43 BTU/Hr.
System AC input VA requirement: 103.5VA.

Weights (approximate)

Product Weight	12.4 Lbs. (5.624 kg).
Shipping Weight	13.4 Lbs. (6.078 kg).

Agency Listings

UL Listed For: Commercial CCTV Equipment (UL2044)	https://iq.ulprospector.com/en/profile?e=2863898
cUL Listed For: CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment	https://iq.ulprospector.com/en/profile?e=2863922
